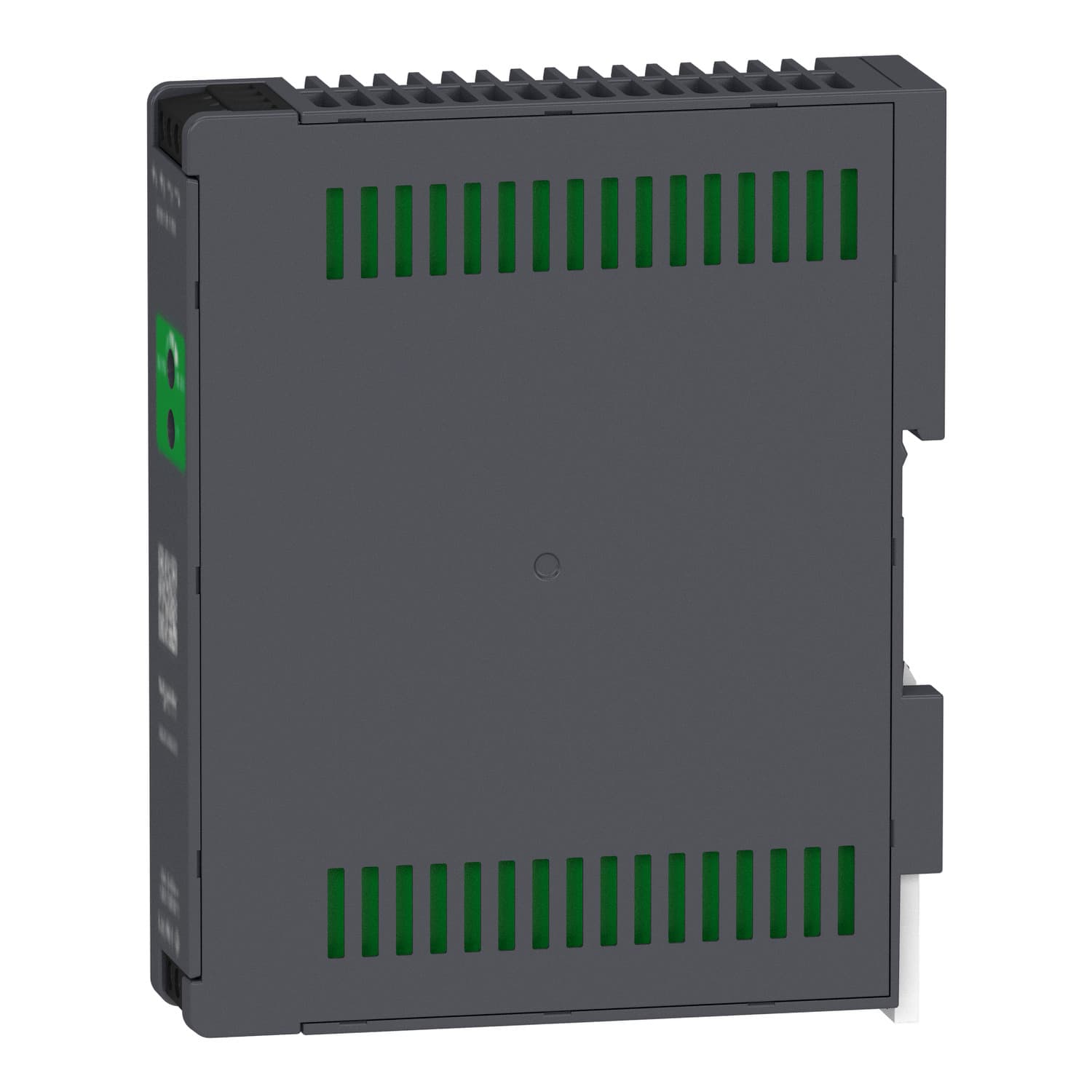

منتج شنايدر ABLS1A12062

المواصفات الفنية

المواصفات الكاملة لـ ABLS1A12062

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Variant option

Optimized

Enclosure material

Plastic

Nominal input voltage

100...240 V AC single phase; 100...240 V AC phase to phase; 140...340 V DC

Rated power in W

75 W

Output voltage

12 V DC

Power supply output current

6.25 A

Input voltage limits

85...264 V AC without temperature derating; 120...375 V DC without temperature derating

Nominal network frequency

50…60 Hz

Network system compatibility

TN; TT; IT

Maximum leakage current

1 mA 240 V AC

Input protection type

Integrated fuse (not interchangeable) 5 A; External protection (recommended) 20 A Curve C; External protection (recommended) 13 A Curve B; External protection (recommended) 10 A Curve C

Inrush current

40.0 A at 115 V; 80.0 A at 230 V

Power factor

0.55 at 115 V AC; 0.45 at 230 V AC
