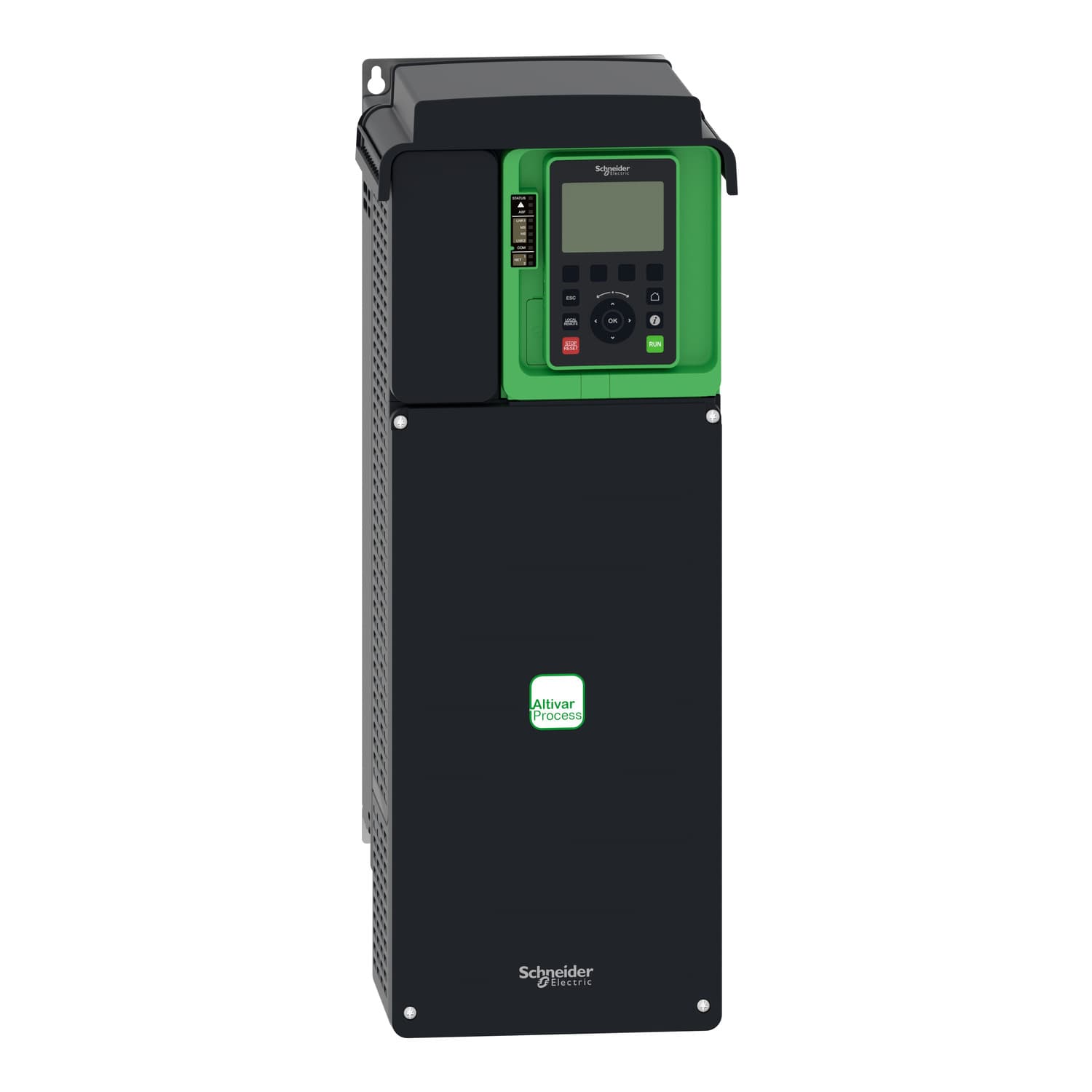

محول تردد شنايدر ATV930D15N4

المواصفات الفنية

المواصفات الكاملة لـ ATV930D15N4

Range of product

Altivar Process ATV900

Product specific application

Process for industrial

Product or component type

Variable speed drive

Variant

With braking chopper; Standard version

Device application

Industrial application

Product destination

Asynchronous motors; Synchronous motors

Network number of phases

3 phases

Mounting mode

Wall mount

Continuous output current

31.7 A at 4 kHz for normal duty; 23.5 A at 4 kHz for heavy duty

Communication port protocol

Modbus serial; Modbus TCP; EtherNet/IP

Us rated supply voltage

380...480 V - 15...10 %

Relative symmetric mains voltage tolerance

10 %

Relative symmetric network frequency tolerance

5 %

nominal output current

31.7 A

Motor power kW

15.0 kW for normal duty; 11.0 kW for heavy duty

EMC filter

Integrated; With EMC plate option
