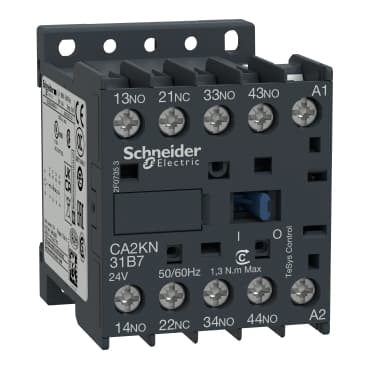

منتج شنايدر CA2KN31F7

المواصفات الفنية

المواصفات الكاملة لـ CA2K

Range

TeSys

Product name

TeSys CAK

Product or component type

Control relay

Device short name

CA2K

Contactor application

Control circuit

Utilisation category

AC-15; DC-13

Pole contact composition

3 NO + 1 NC

Ue rated operational voltage

<= 690 V <= 400 Hz

Control circuit type

AC at 50/60 Hz

Uc control circuit voltage

110 V AC 50/60 Hz

Ith conventional free air thermal current

10 A (at 50 °C)

Irms rated making capacity

110 A conforming to IEC 60947

Associated fuse rating

10 A gG conforming to IEC 60947; 10 A gG conforming to VDE 0660

Ui rated insulation voltage

690 V conforming to IEC 60947; 750 V conforming to VDE 0110 group C; 690 V conforming to BS 5424; 600 V conforming to CSA C22.2 No 14

Mounting support

Rail; Plate

Tightening torque

1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm; 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
