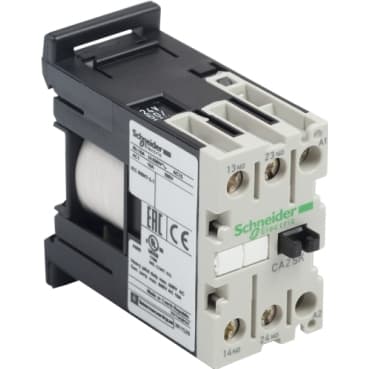

منتج شنايدر CA2SK20M7

المواصفات الفنية

المواصفات الكاملة لـ CA2SK

Range

TeSys

Product name

TeSys CASK

Product or component type

Control relay

Device short name

CA2SK

Contactor application

Control circuit

Utilisation category

DC-13; AC-15

Pole contact composition

2 NO

Ue rated operational voltage

<= 690 V <= 400 Hz

Control circuit type

AC at 50/60 Hz

Uc control circuit voltage

220 V AC 50/60 Hz

Ith conventional free air thermal current

10 A (at 55 °C)

Associated fuse rating

10 A gL conforming to VDE 0660; 10 A gL conforming to IEC 60947

Ui rated insulation voltage

690 V conforming to IEC 60947; 690 V conforming to VDE 0110 group C; 690 V conforming to BS 5424; 690 V conforming to UL 508; 690 V conforming to CSA C22.2 No 14

Mounting support

Plate; Rail

Tightening torque

0.8 N.m - on screw clamp terminals pozidriv No 1 screw head

Control circuit voltage limits

Drop-out: 0.2...0.75 Uc (at <50 °C); Operational: 0.85...1.1 Uc (at <50 °C)
