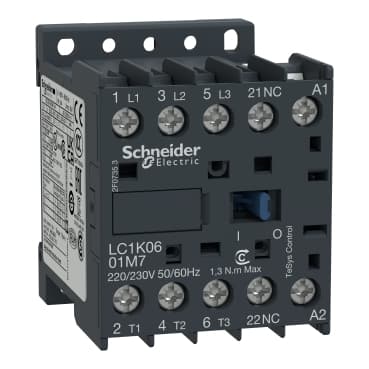

كونتاكتور شنايدر LC1K0601U7TQ

المواصفات الفنية

المواصفات الكاملة لـ LC1K

Range

TeSys

Product or component type

Contactor

Device short name

LC1K

Contactor application

Motor control

Utilisation category

AC-3; AC-3e; AC-4

Poles description

3P

power pole contact composition

3 NO

Ue rated operational voltage

Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz

Ie rated operational current

6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Control circuit type

AC at 50/60 Hz standard

Uc control circuit voltage

230...240 V AC 50/60 Hz

Auxiliary contact composition

1 NC

Uimp rated impulse withstand voltage

8 kV

Ith conventional free air thermal current

20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit

Irms rated making capacity

110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947

Rated breaking capacity

110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947; 110 A at 415 V conforming to IEC 60947; 110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947; 70 A at 660...690 V conforming to IEC 60947
