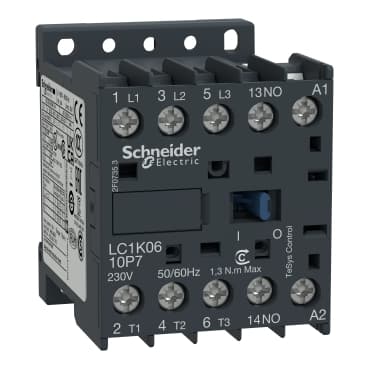

كونتاكتور شنايدر LC1K0610FE7

المواصفات الفنية

المواصفات الكاملة لـ LC1K

Range

TeSys

Product or component type

Contactor

Device short name

LC1K

Device application

Control

Contactor application

Motor control

Utilisation category

AC-3; AC-3e; AC-4

Poles description

3P

power pole contact composition

3 NO

Ue rated operational voltage

Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz

Ie rated operational current

6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Control circuit type

AC at 50/60 Hz

Uc control circuit voltage

115 V AC 50/60 Hz

Auxiliary contact composition

1 NO

Uimp rated impulse withstand voltage

8 kV

Overvoltage category

III

Ith conventional free air thermal current

20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit
