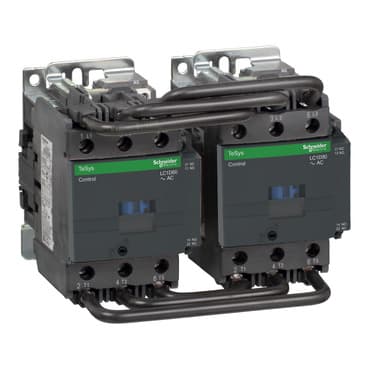

كونتاكتور شنايدر LC2D80FE7

المواصفات الفنية

المواصفات الكاملة لـ LC2D

Range

TeSys

Product name

TeSys Deca

Product or component type

Reversing contactor

Device short name

LC2D

Contactor application

Resistive load; Motor control

Utilisation category

AC-1; AC-3; AC-3e; AC-4

Device presentation

Preassembled with reversing power busbar

Poles description

3P

power pole contact composition

3 NO

Ue rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC

Ie rated operational current

125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit; 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit

Motor power kW

22 kW at 220...230 V AC 50 Hz; 37 kW at 380...400 V AC 50 Hz; 45 kW at 415...440 V AC 50 Hz; 55 kW at 500 V AC 50 Hz; 45 kW at 660...690 V AC 50 Hz

Motor power hp

20 hp at 200/208 V AC 60 Hz for 3 phases motors; 7.5 hp at 115 V AC 60 Hz for 1 phase motors; 15 hp at 230/240 V AC 60 Hz for 1 phase motors; 25 hp at 230/240 V AC 60 Hz for 3 phases motors; 60 hp at 460/480 V AC 60 Hz for 3 phases motors; 60 hp at 575/600 V AC 60 Hz for 3 phases motors

Control circuit type

AC at 50/60 Hz

Uc control circuit voltage

115 V AC 50/60 Hz

Auxiliary contact composition

1 NO + 1 NC
