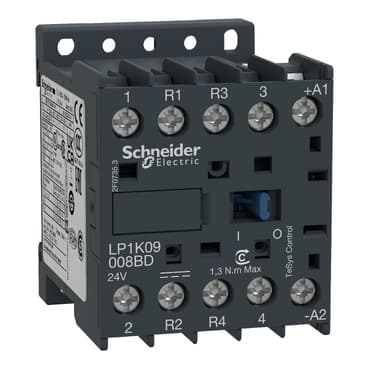

كونتاكتور شنايدر LP1K09008FD

المواصفات الفنية

المواصفات الكاملة لـ LP1K

Range

TeSys

Product or component type

Contactor

Device short name

LP1K

Contactor application

Resistive load

Utilisation category

AC-1

Poles description

4P

power pole contact composition

2 NO + 2 NC

Ue rated operational voltage

Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz

Ie rated operational current

20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit

Control circuit type

DC standard

Uc control circuit voltage

110 V DC

Uimp rated impulse withstand voltage

8 kV

Overvoltage category

III

Ith conventional free air thermal current

20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit

Irms rated making capacity

110 A AC for power circuit conforming to IEC 60947

Rated breaking capacity

110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947; 110 A at 415 V conforming to IEC 60947; 110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947; 70 A at 660...690 V conforming to IEC 60947
