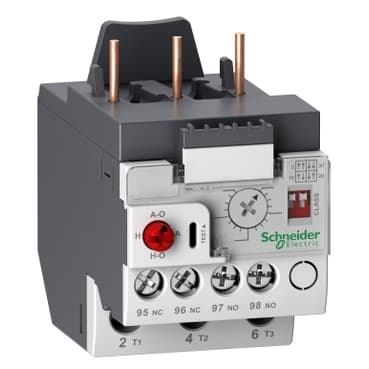

منتج شنايدر LR9D08

المواصفات الفنية

المواصفات الكاملة لـ LR9D

Range

TeSys

Product name

TeSys LRD

Device short name

LR9D

Product or component type

Electronic thermal overload relay

Relay application

Motor protection

Product compatibility

LC1D12; LC1D32; LC1D38; LC1D09; LC1D25; LC1D18

Thermal overload class

Class 5…30

Thermal protection adjustment range

1.6…8 A

Power consumption in W

300 mW

Mounting support

Under contactor; Plate, with specific accessories; Rail, with specific accessories

Ue rated operational voltage

690 V for power circuit; 660 V for signalling circuit

Ui rated insulation voltage

Power circuit: 1000 V; Signalling circuit: 690 V

Tripping threshold

1.25 In conforming to IEC 60947-4-1

Control type

Red push-button: stop and manual reset; White 2 microswitches: adjustable trip class; Red knob: automatic reset; White dial: full-load current adjustment

Time range

1.5...4 min - automatic reset time

Ith conventional free air thermal current

5 A for signalling circuit
