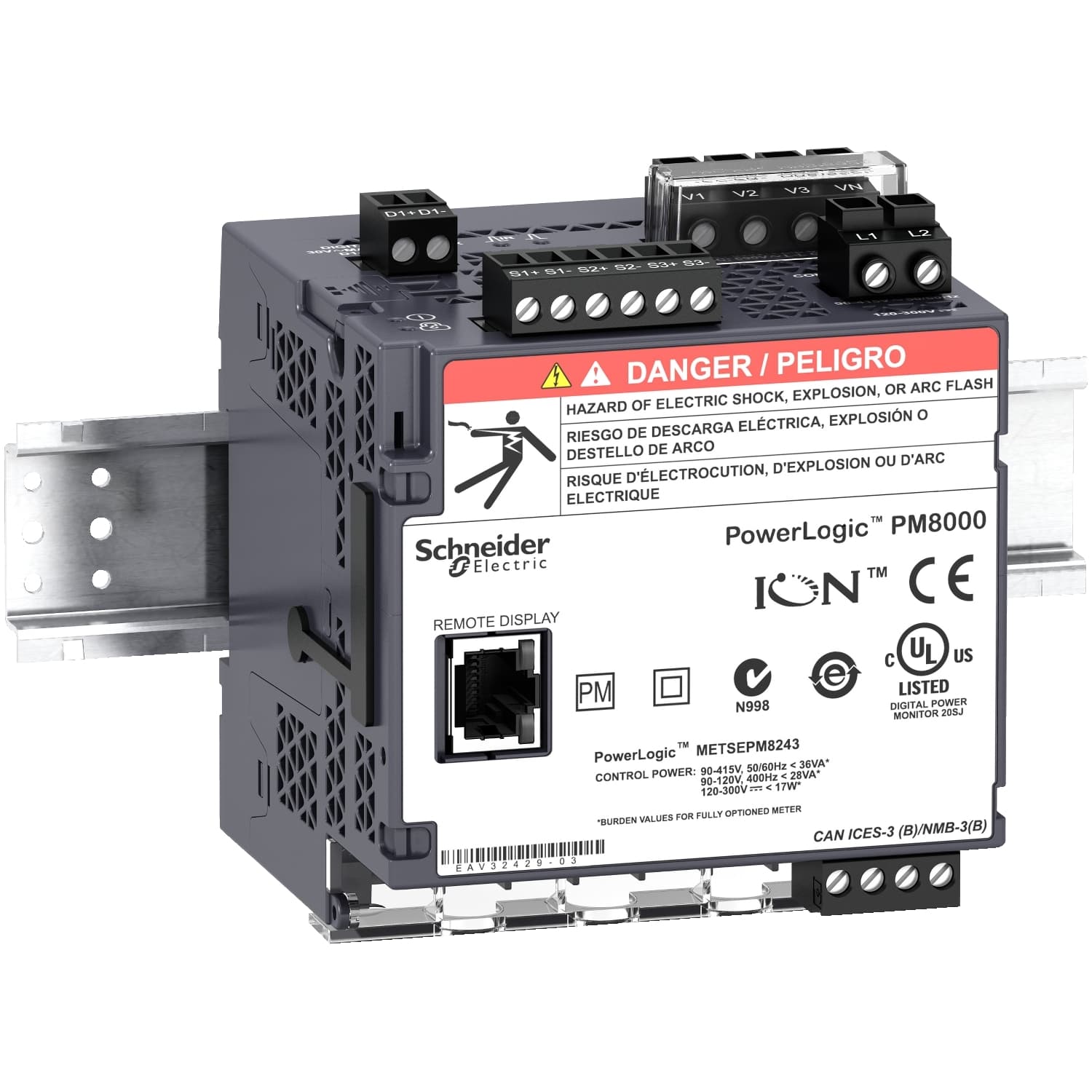

منتج شنايدر METSEPM8243

المواصفات الفنية

المواصفات الكاملة لـ PM8243

Range

PowerLogic

Product name

PowerLogic PM8000

Product or component type

Power meter

Device short name

PM8243

model type

Standard

Device application

WAGES metering; Power monitoring

Type of measurement

Current; Voltage; Frequency; Active and reactive power total; Apparent power total; Power factor total; Active and reactive power per phase, rms; Apparent power per phase, rms; Power factor per phase, rms

supply voltage

90...415 V AC 45...65 Hz +/- 10 %; 110...415 V DC +/- 10 %

Network frequency

50 Hz; 60 Hz

In rated current

1 A; 10 A; 5 A

Poles description

1P + N; 3P + N; 3P

Power consumption in VA

16 VA at 230 V AC

Display type

Without display

Sampling rate

256 samples/cycle

Measurement current

50…10000 mA

Analogue input type

Voltage (impedance 5 MOhm); Current (impedance 0.3 mOhm)
