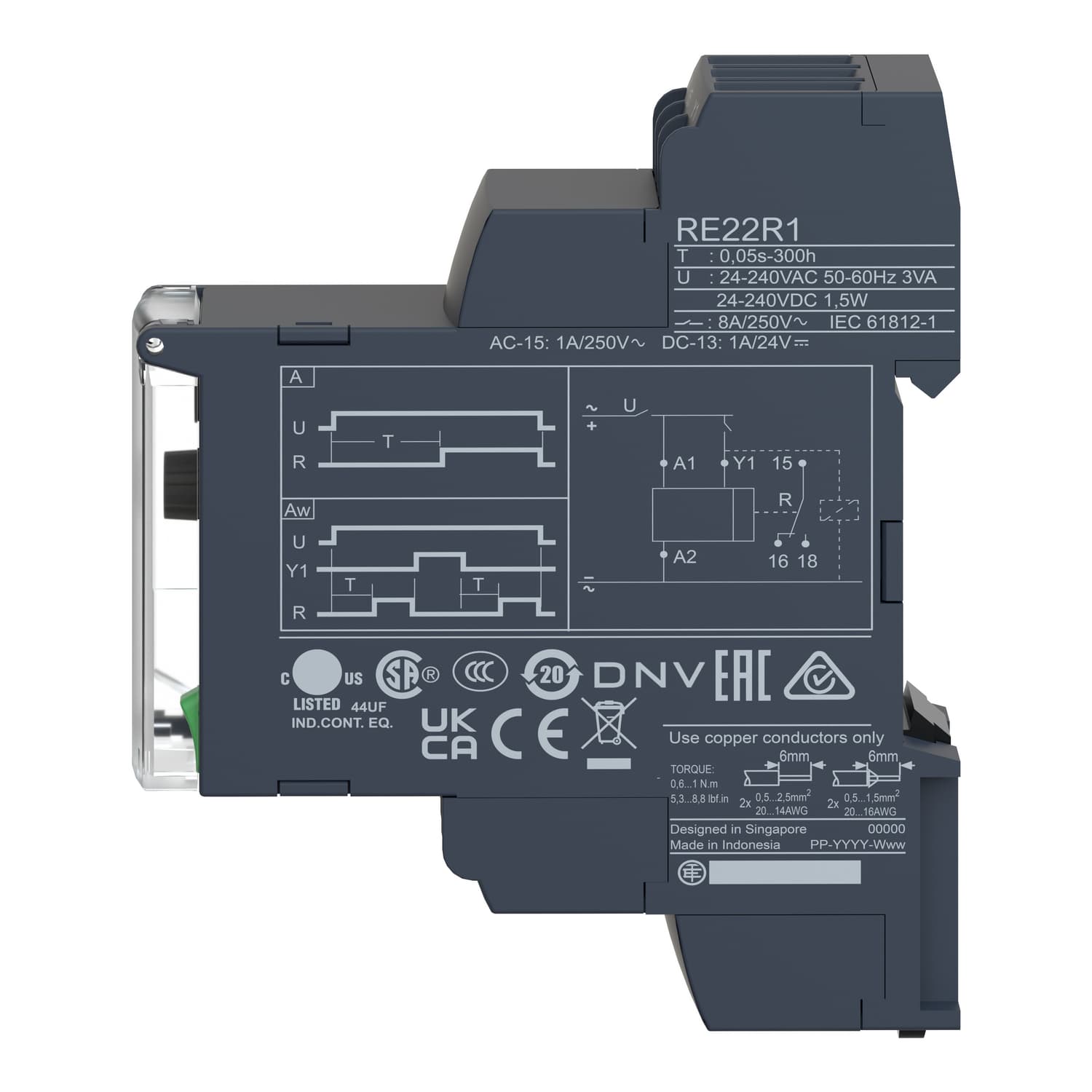

مؤقت شنايدر RE22R1AMR

المواصفات الفنية

المواصفات الكاملة لـ RE22

Range of product

Harmony Timer Relays

Discrete output type

Relay

Product or component type

Modular timing relay

Device short name

RE22

nominal output current

8 A

Contacts type and composition

1 C/O timed contact, cadmium free

Time delay type

Power on-delay

Time delay range

3...30 s; 30...300 s; 10...100 s; 0.05...1 s; 1...10 s; 30...300 h; 30...300 min; 0.3...3 s; 3...30 h; 3...30 min

Control type

Rotary knob; Diagnostic button

Us rated supply voltage

24...240 V AC/DC 50/60 Hz

Release input voltage

<= 2.4 V

Voltage range

0.85...1.1 Us

Supply frequency

50...60 Hz +/- 5 %

Tightening torque

0.6…1 N.m conforming to IEC 60947-1

Housing material

Polycarbonate

Repeat accuracy

\+/\- 0.5 % conforming to IEC 61812-1
