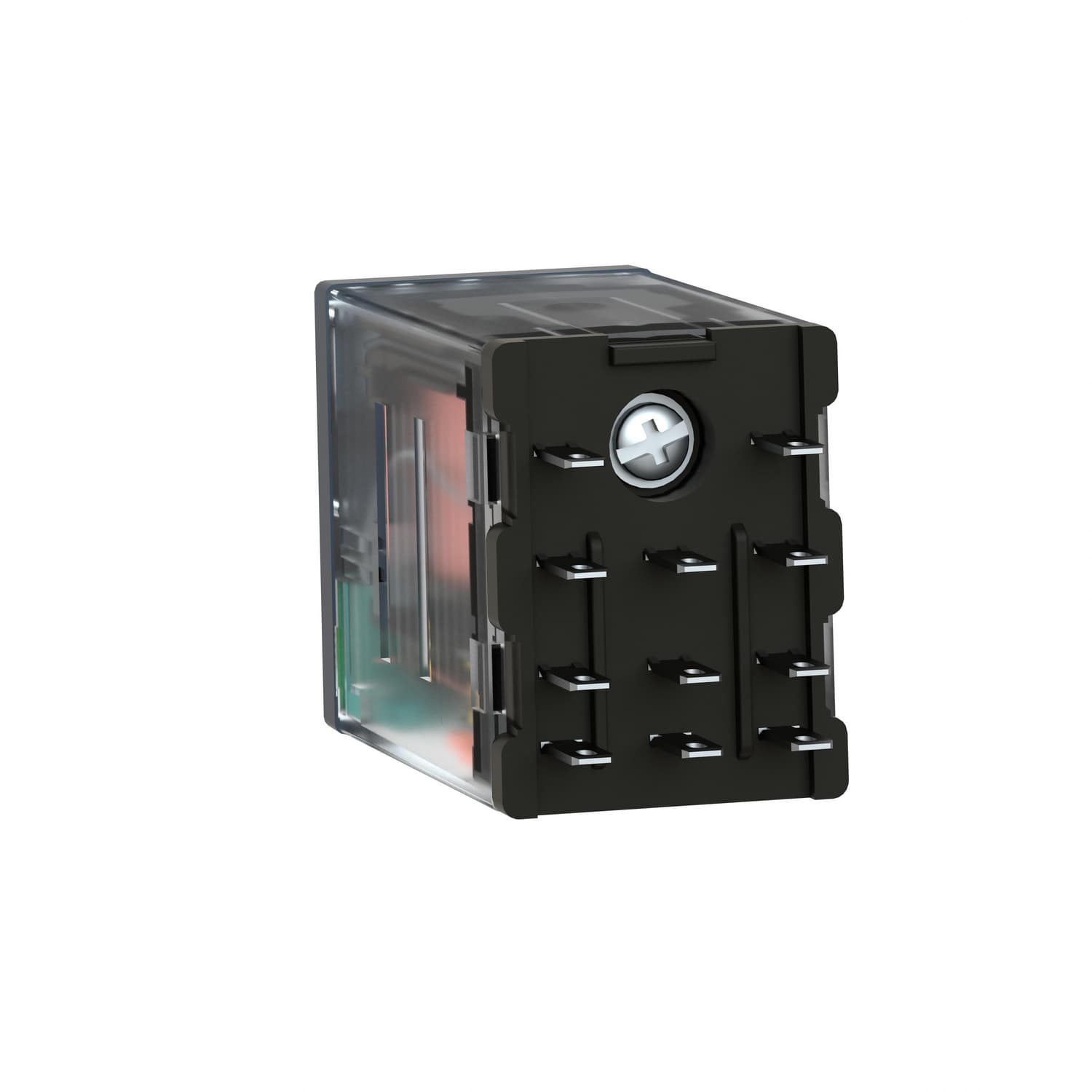

منتج شنايدر RXM3AB2BD

المواصفات الفنية

المواصفات الكاملة لـ RXM3AB2BD

Range of product

Harmony Electromechanical Relays

Series name

RXM series

Product or component type

Plug-in relay

Relay type

Miniature relay

Contacts type and composition

3 C/O

status LED

With

Control type

Lockable test button

Uc control circuit voltage

24 V DC

Ithe conventional enclosed thermal current

10 A

Continuous output current

6.7 A

Uimp rated impulse withstand voltage

4 kV during 1.2/50 µs

Ie rated operational current

10 A at 28 V (DC) NO conforming to IEC; 10 A at 250 V (AC) NO conforming to IEC; 5 A at 28 V (DC) NC conforming to IEC; 5 A at 250 V (AC) NC conforming to IEC; 10 A at 30 V (DC) conforming to UL; 10 A at 277 V (AC) conforming to UL

Minimum switching capacity

170 mW at 10 mA, 17 V

Electrical durability

100000 cycles for resistive load

Rated operational voltage limits

19.2...26.4 V DC

Ui rated insulation voltage

250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL
