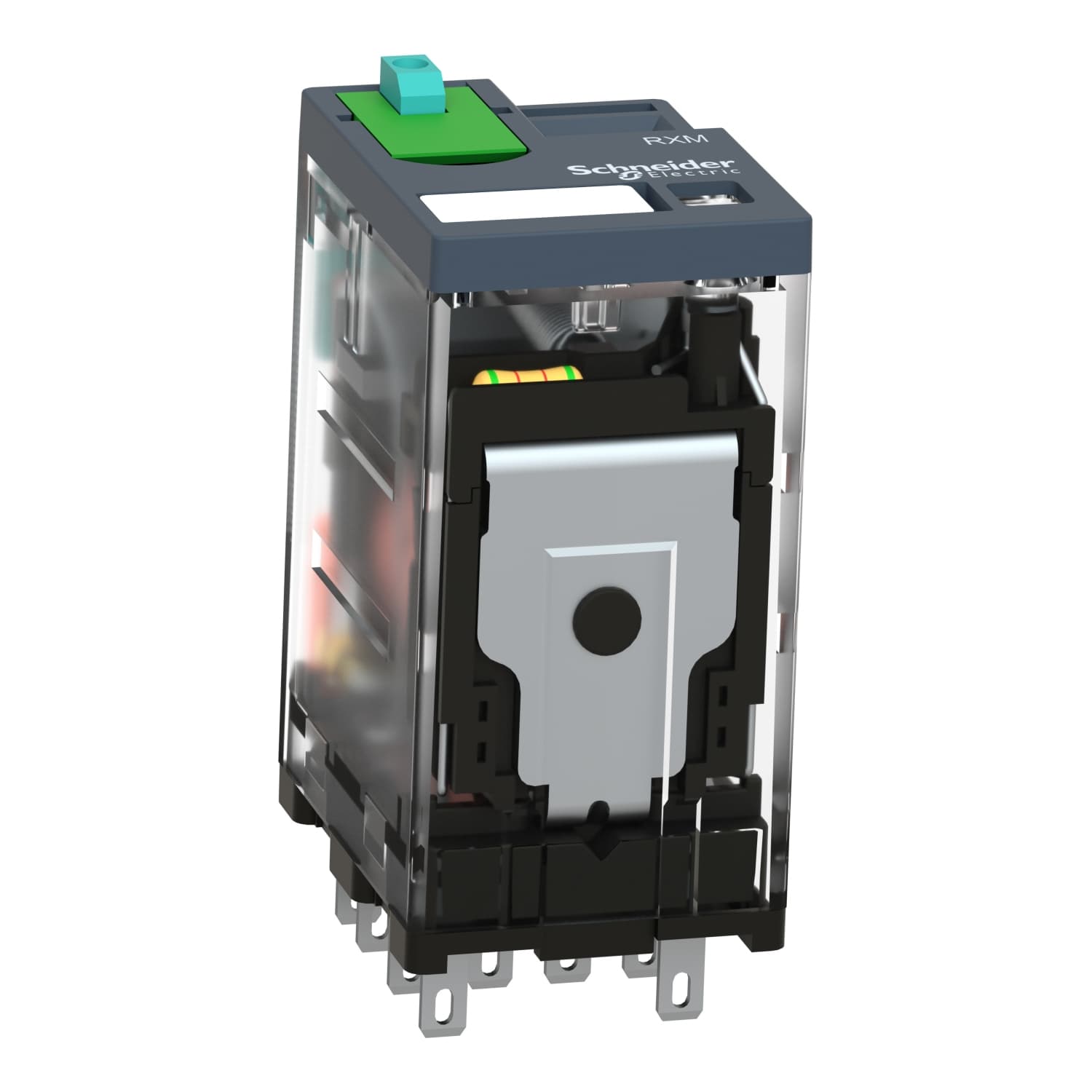

منتج شنايدر RXM4GB2BD

المواصفات الفنية

المواصفات الكاملة لـ RXM4GB2BD

Range of product

Harmony Electromechanical Relays

Series name

RXM series

Product or component type

Plug-in relay

Relay type

Miniature relay

Contacts type and composition

4 C/O

status LED

With

Control type

Lockable test button

Uc control circuit voltage

24 V DC

Ithe conventional enclosed thermal current

3 A at -40…55 °C

Uimp rated impulse withstand voltage

2.5 kV during 1.2/50 µs

Ie rated operational current

2 A at 28 V (DC) NO conforming to IEC; 2 A at 250 V (AC) NO conforming to IEC; 1 A at 28 V (DC) NC conforming to IEC; 1 A at 250 V (AC) NC conforming to IEC; 3 A at 28 V (DC) conforming to UL; 3 A at 277 V (AC) conforming to UL

Minimum switching capacity

15 mW at 3 mA, 5 V

Electrical durability

100000 cycles for resistive load depending on mounting position and working environment

Rated operational voltage limits

19.2...26.4 V DC

Ui rated insulation voltage

250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL

Maximum switching voltage

250 V conforming to IEC
