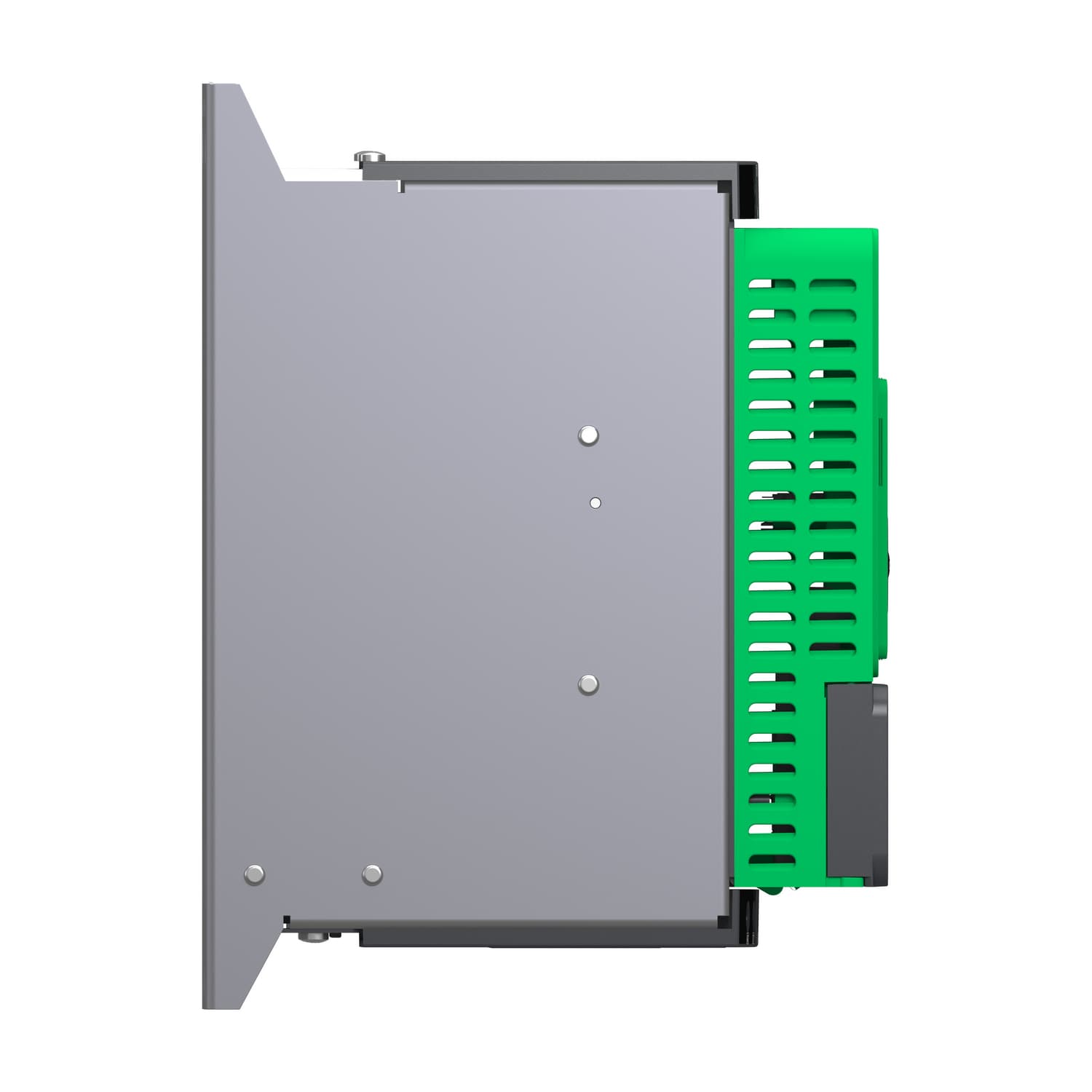

منتج شنايدر ATS480D38Y

المواصفات الفنية

المواصفات الكاملة لـ ATS480

Range of product

Altivar Soft Starter ATS480

Product or component type

Soft starter

Product destination

Asynchronous motors

Product specific application

Process and infrastructures

Device short name

ATS480

Network number of phases

3 phases

Utilisation category

AC-3A; AC-53A

Ue power supply voltage

208...690 V - 15...10 %

power supply frequency

50...60 Hz - 20...20 %

Ie rated operational current

Normal duty: 38.0 A (at <40 °C)

rated current in heavy duty

32.0 A at 40 °C for heavy duty

Torque control

True

IP degree of protection

IP20

Motor power hp

10.0 hp at 208 V normal duty; 7.5 hp at 208 V heavy duty; 10.0 hp at 230 V heavy duty; 25.0 hp at 460 V normal duty; 20.0 hp at 460 V heavy duty; 30.0 hp at 575 V normal duty; 25.0 hp at 575 V heavy duty

Option card

Communication module for Profibus DP V1; Communication module for Modbus TCP/EtherNet/IP; Communication module for CANopen daisy chain; Communication module for CANopen Sub-D; Communication module for CANopen open style; Communication module for PROFINET

Device connection

In the motor supply line; To the motor delta terminals
