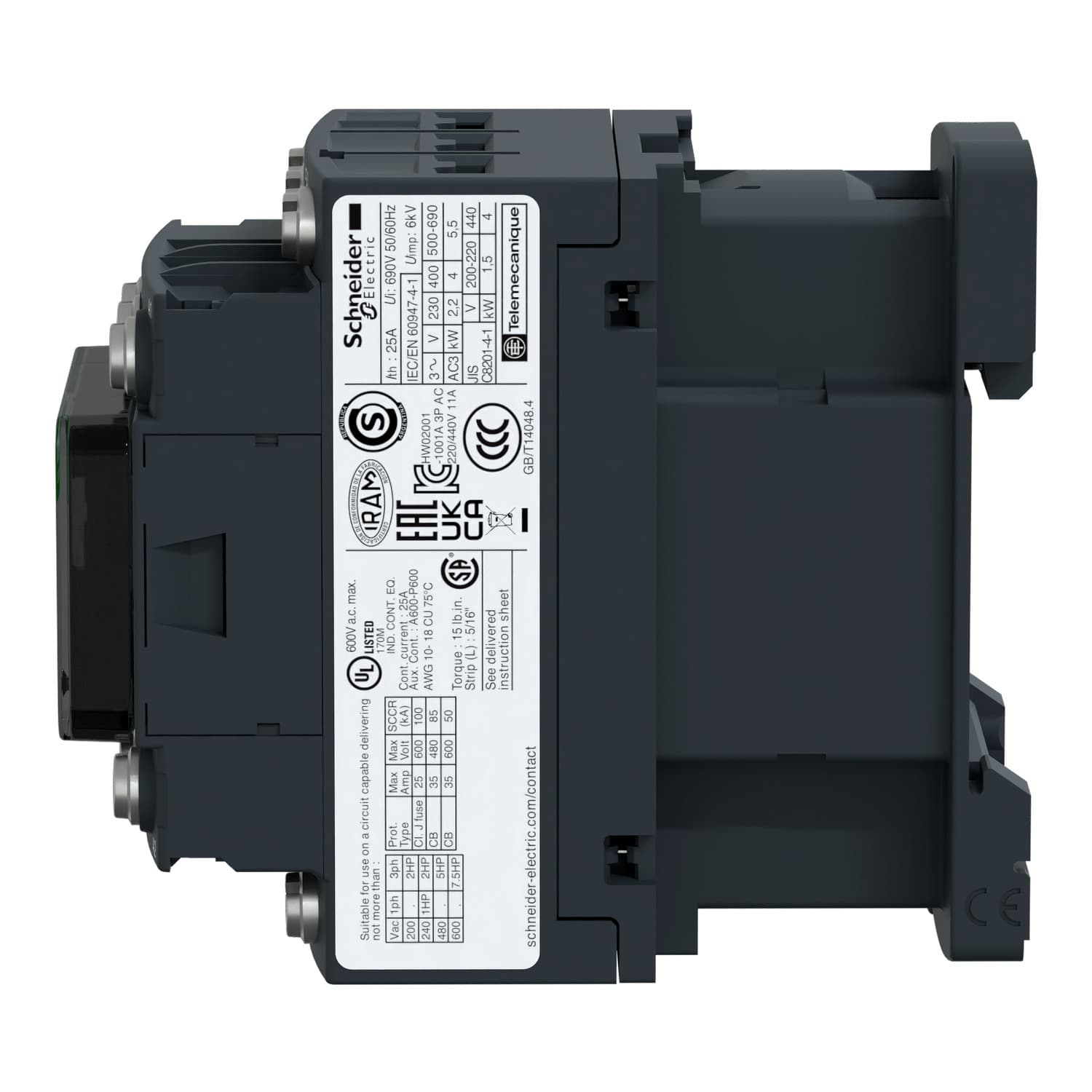

كونتاكتور شنايدر LC1D186P7

المواصفات الفنية

المواصفات الكاملة لـ LC1D

Range of product

TeSys Deca

Product or component type

Contactor

Device short name

LC1D

Contactor application

Motor control; Resistive load

Utilisation category

AC-4; AC-1; AC-3; AC-3e

Poles description

3P

Ue rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz; Power circuit: <= 300 V DC

Ie rated operational current

18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit

Uc control circuit voltage

230 V AC 50/60 Hz

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

With

Ith conventional free air thermal current

10 A (at 60 °C) for signalling circuit; 32 A (at 60 °C) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 300 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

300 A at 440 V for power circuit conforming to IEC 60947

Icw rated short-time withstand current

145 A 40 °C - 10 s for power circuit; 240 A 40 °C - 1 s for power circuit; 40 A 40 °C - 10 min for power circuit; 84 A 40 °C - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit
