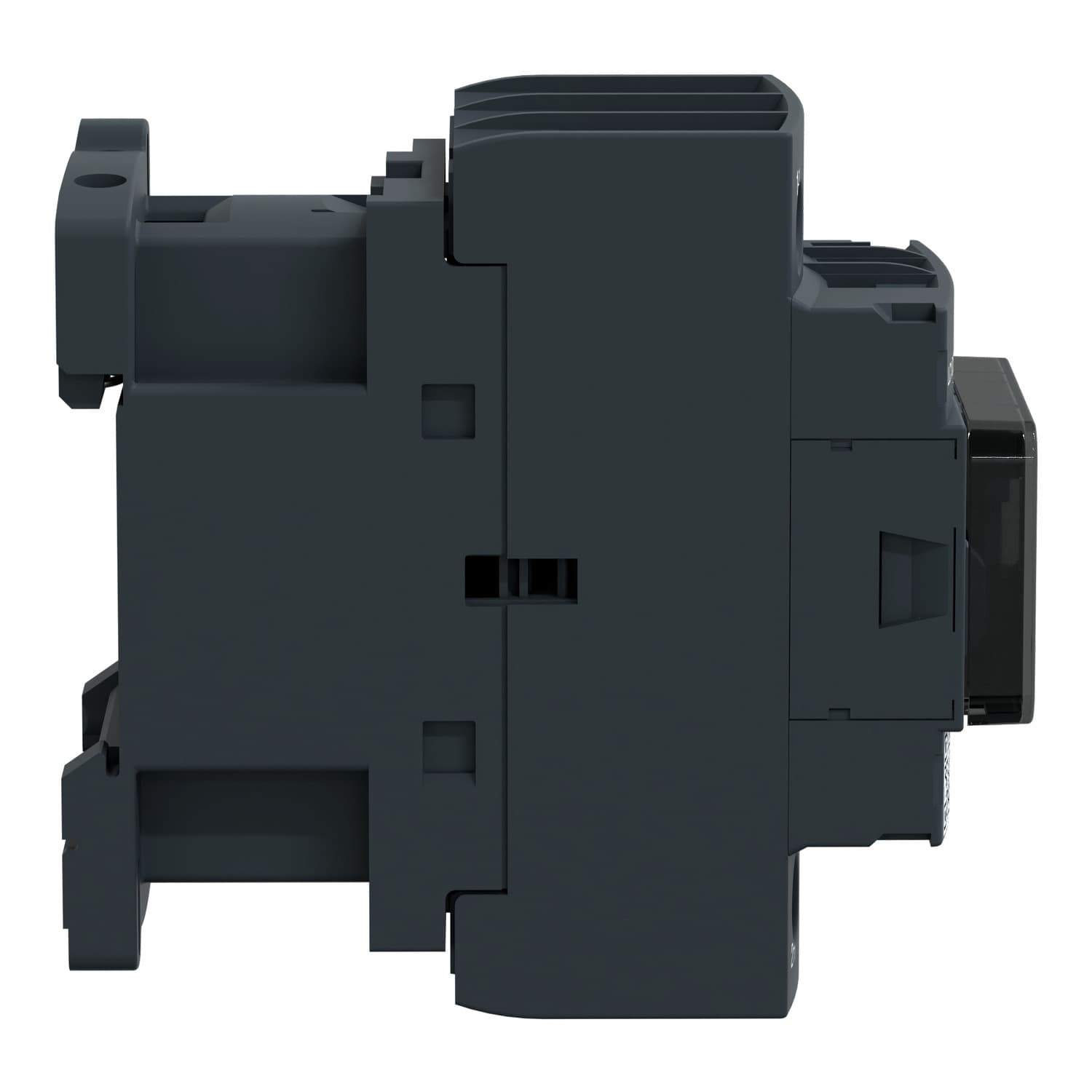

كونتاكتور شنايدر LC1D25KUE

المواصفات الفنية

المواصفات الكاملة لـ LC1D

Range of product

TeSys Deca Advanced

Product or component type

Contactor

Device short name

LC1D

Contactor application

Motor control; Resistive load

Utilisation category

AC-3; AC-1; AC-3e

Poles description

3P

Ue rated operational voltage

Power circuit: <= 690 V AC 25...400 Hz

Ie rated operational current

25 A (at <60 °C) at <= 440 V AC-3 for power circuit; 40 A (at <60 °C) at <= 440 V AC-1 for power circuit; 25 A (at <60 °C) at <= 440 V AC-3e for power circuit

Uc control circuit voltage

100...250 V AC 50/60 Hz; 100...250 V DC

Motor power hp

2 hp at 115 V AC 60 Hz for 1 phase motors; 3 hp at 230/240 V AC 60 Hz for 1 phase motors; 7.5 hp at 200/208 V AC 60 Hz for 3 phases motors; 7.5 hp at 230/240 V AC 60 Hz for 3 phases motors; 15 hp at 460/480 V AC 60 Hz for 3 phases motors; 20 hp at 575/600 V AC 60 Hz for 3 phases motors

Compatibility code

LC1D

Pole contact composition

3 NO

Protective cover

With

Ith conventional free air thermal current

10 A (at 60 °C) for signalling circuit; 40 A (at 60 °C) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

450 A at 440 V for power circuit conforming to IEC 60947
