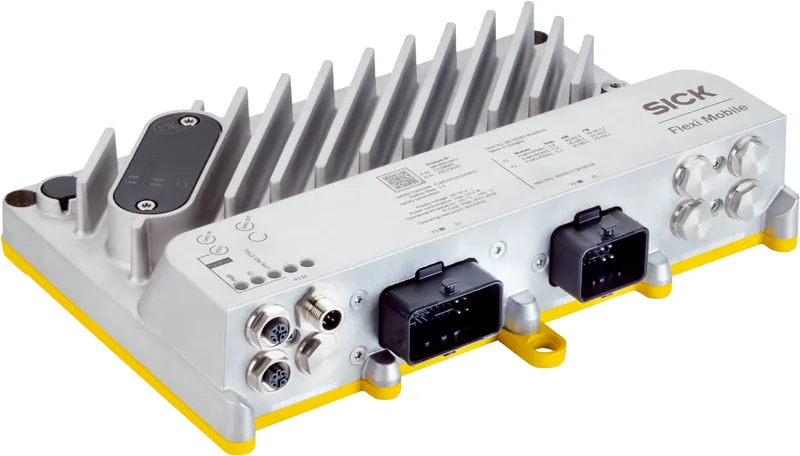

منتج أمان صناعي سيك FLM3-CPUN100A03

المواصفات الفنية

المواصفات الكاملة لـ FLM3-CPUN100A03

Connection type

1 × USB (on the smart plug), 1 × rectangular plug, 48-pin, type: Molex CMC, 1 × rectangular plug, 32-pin, type: Molex CMC, 1 × Ethernet: M12 socket, 4-pin, D-coded, 1 × CAN-I: M12 plug, 5-pin, A-coded, 1 × CAN-O: M12 socket, 5-pin, A-coded

Fieldbus, industrial network

Modbus® TCP, SLMP, CANopen

Controller networking

–

Encoder interface

A/B incremental encoder, HTL 24 V

Safety level

PL e, SIL 3

Drive safety functions

safe stop 0 (SS0), safe stop 1 (SS1), safe stop 2 (SS2), safe operating stop (SOS), safe speed monitoring (SSM), safely-limited speed (SLS), safe direction (SDI), safe brake control (SBC), Safe cam (SCA), Safely-limited position (SLP)

Configuration and diagnostics interface

USB connection via SmartPlug, TCP/IP configuration interface

Configuration method

via software

Application

Safety controller for mobile applications

Enhanced sensor functions

–

Protective coating

No

Configuration software

Safety Designer

Product segment

Safety controllers

Module

Complete system

Inputs/outputs

28 safety inputs, 12 safety outputs, 8 test outputs

Certificate

EU declaration of conformity, ACMA declaration of conformity, China RoHS, cULus certificate, cTUVus certificate, EC-Type-Examination approval, EC-Type-Examination approval (Machinery Directive), EC-Type-Examination approval (Machinery Regulation), Third party certificate, Information according to Art. 3 of Data Act (Regulation EU 2023/2854)
