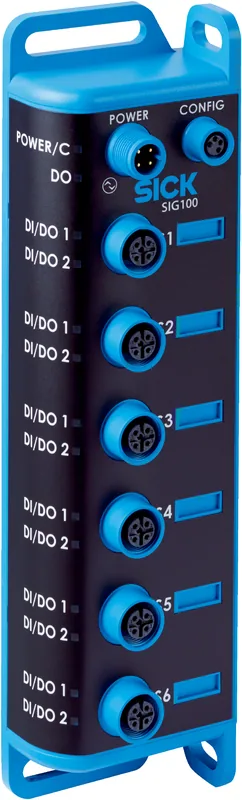

مكوّن توصيل وشبكات سيك SIG100-0A0111100

المواصفات الفنية

المواصفات الكاملة لـ SIG100-0A0111100

Communication interface

USB, IO-Link

Enclosure rating

IP67

Ambient temperature

-40 °C

IO-Link class

IO-Link sensor hub (IO-Link device) with 6 ports which can be used to connect sensors and actuators. The SIG100 Sensor Integration Gateway can therefore connect up to 12 binary switching signals and communicate them to any IO-Link master via IO-Link. The SIG100 can also be operated as a standalone system by directly configuring simple logic functions across several connected devices via the SOPAS ET user interface.

Weight

289 g

Further functions

USB connection for easy configuration of the SIG100 Sensor Integration Gateway with SOPAS ET, the engineering tool from SICK, logic editor is available for easy configuration of logic functions

Logic editor

Yes

Connection CONFIG

1 x M8, 4-pin female connector, USB 2.0 (USB-A)

I/O connection

6 x M12, 5-pin female connector, A-coded

SICK SensorApp preinstalled

No

IO-Link or DI/DO Ports

6 x M12, 5-pin female connector, A-coded, 1 x M12, 4-pin plug, A-coded, 1 x M8, 4-pin female connector, USB 2.0 (USB-A)

Communication Interface detail

IO-Link V1.1

Supported products

binary switching sensors, binary actuators

Product segment

network devices

Product category

IO-Link Hub

Certificate

EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, Moroccan declaration of conformity, China RoHS, cULus certificate, IO-Link certificate
