Schneider ATV930U40N4 Variable Speed Drive Altivar Process ATV900 ATV930 4kW
Model: ATV930U40N4
4-hour response · Pricing in SAR · Delivery across all KSA regions

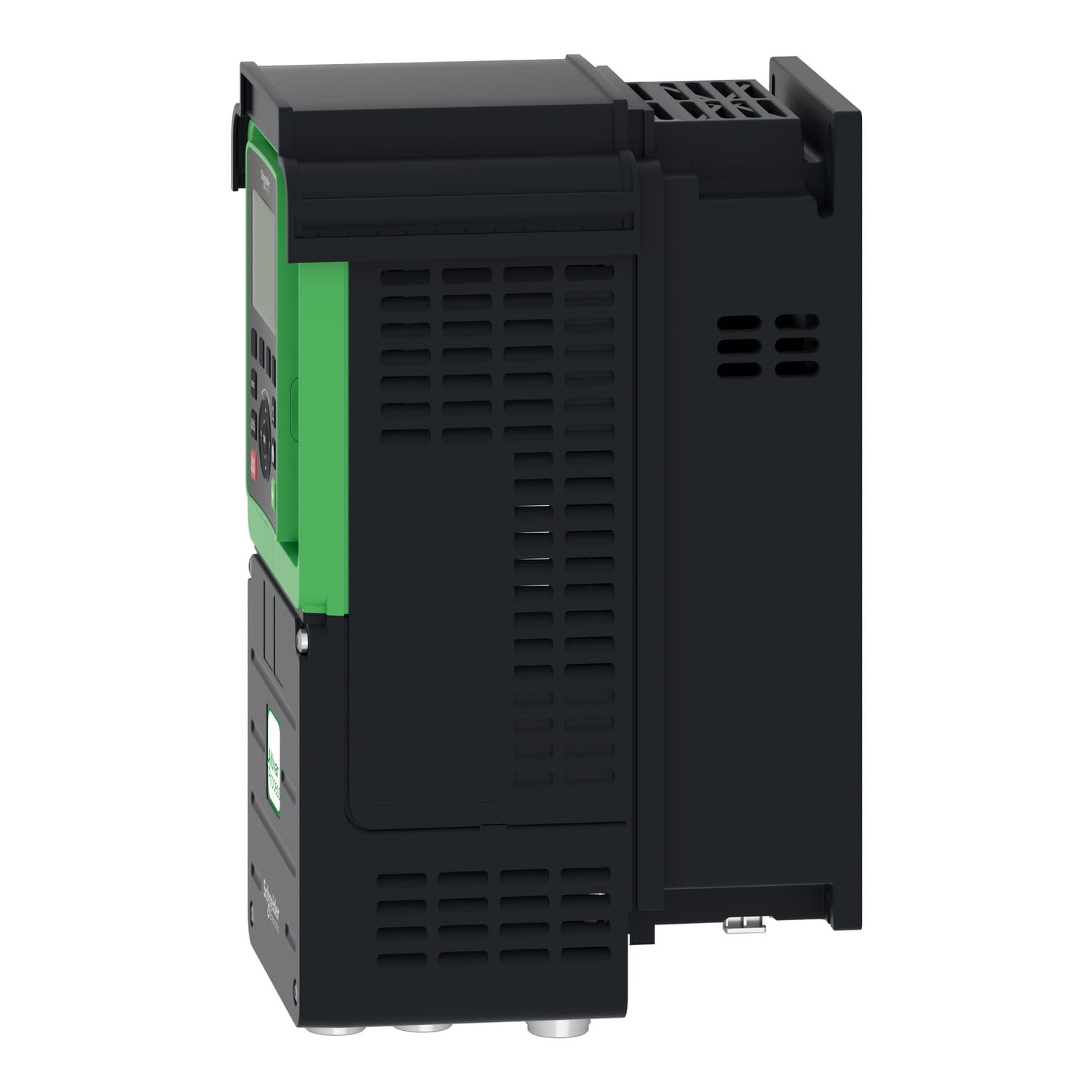

Schneider ATV930U40N4 Variable Speed Drive Altivar Process ATV900 ATV930 4kW
The Schneider Electric ATV930U40N4 is a variable speed drive from the Altivar Process ATV900 range. It is rated 4.0 kW for normal duty on a 380...480 V - 15...10 % supply. Nominal output current is 9.3 A. Ingress protection is IP21. Communication protocols on board: Modbus serial, Modbus TCP, EtherNet/IP.
It belongs to the Altivar Process ATV900 family — Schneider's high-performance process drive for demanding torque and speed control, with closed-loop capability, braking options and the same process intelligence and Ethernet backbone as the wider ATV Process platform.
Across Saudi Arabia, Altivar Process ATV900 products are specified daily by maintenance and projects teams at Saudi Aramco, SABIC affiliates, SWCC desalination plants, cement plants and Vision 2030 giga-projects including NEOM. ATV900 drives handle the tough loads of Saudi industry — crushers, extruders, hoists and compressors — where control precision protects mechanics. Razz Middle East supports EPC contractors and plant buyers in Riyadh, Jeddah, Dammam, Jubail and Yanbu with local stock and expedited sourcing through our Jeddah, Dubai and India operations.
Buy the Schneider ATV930U40N4 Variable Speed Drive Altivar Process ATV900 ATV930 4kW in Saudi Arabia from Razz Middle East. We stock fast-moving Altivar Process ATV900 references in Jeddah and Dammam with GCC-wide delivery, respond to every RFQ within 4 hours, and supply genuine Schneider Electric products with manufacturer warranty, test certificates and SASO-compliant documentation. Contact our sales team for pricing, stock availability and technical support for ATV930U40N4.
Technical Specifications
Full specifications for the ATV930U40N4
- Range of product
- Altivar Process ATV900
- Product specific application
- Process for industrial
- Product or component type
- Variable speed drive
- Variant
- Standard version; With braking chopper
- Device application
- Industrial application
- Product destination
- Synchronous motors; Asynchronous motors
- Network number of phases
- 3 phases
- Mounting mode
- Wall mount
- Continuous output current
- 9.3 A at 4 kHz for normal duty; 7.2 A at 4 kHz for heavy duty
- Communication port protocol
- Modbus serial; Modbus TCP; EtherNet/IP
- Us rated supply voltage
- 380...480 V - 15...10 %
- Relative symmetric mains voltage tolerance
- 10 %
- Relative symmetric network frequency tolerance
- 5 %
- nominal output current
- 9.3 A
- Motor power kW
- 4.0 kW for normal duty; 3.0 kW for heavy duty
- EMC filter
- Integrated; With EMC plate option
Key Features & Benefits
- High-torque performance control
- Closed-loop vector capability
- Embedded Ethernet + web server
- Braking transistor options
- Process function library
- Cabinet and wall-mount formats
Industrial Applications in Saudi Arabia
- Crushers and mills
- Extruders
- Hoisting equipment
- Compressors
- Conveyors
- Marine and heavy industry
Industrial Supplier in Saudi Arabia
Get a Quote for the Schneider ATV930U40N4 Variable Speed Drive Altivar Process ATV900 ATV930 4kW
We respond within 4 business hours. Send model ATV930U40N4 for competitive pricing in SAR with delivery across Saudi Arabia and the GCC.
Frequently Asked Questions — ATV930U40N4
Common questions from buyers in Saudi Arabia and the GCC
