Schneider LV434001 Ife Ethernet Interface
Model: IFEP/N: LV434001
4-hour response · Pricing in SAR · Delivery across all KSA regions

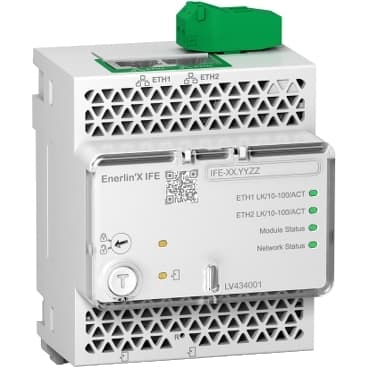

Schneider LV434001 Ife Ethernet Interface
The Schneider Electric LV434001 is a interface module from the ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200 range. Ingress protection is Connectors: IP2X. Mounting is by clips.
It belongs to the ComPact NSX family — the reference moulded case breaker platform with TMD thermal-magnetic or Micrologic electronic protection to 630 A and breaking capacities to 150 kA.
Across Saudi Arabia, ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200 products are specified daily by maintenance and projects teams at Saudi Aramco, SABIC affiliates, SWCC desalination plants, cement plants and Vision 2030 giga-projects including NEOM. NSX is the MCCB Saudi switchgear builders stock by default; every panel shop in the Kingdom knows its accessory system. Razz Middle East supports EPC contractors and plant buyers in Riyadh, Jeddah, Dammam, Jubail and Yanbu with local stock and expedited sourcing through our Jeddah, Dubai and India operations.
Buy the Schneider LV434001 Ife Ethernet Interface in Saudi Arabia from Razz Middle East. We stock fast-moving ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200 references in Jeddah and Dammam with GCC-wide delivery, respond to every RFQ within 4 hours, and supply genuine Schneider Electric products with manufacturer warranty, test certificates and SASO-compliant documentation. Contact our sales team for pricing, stock availability and technical support for LV434001.
Technical Specifications
Full specifications for the IFE
- Range of product
- ComPact NSX100...250; ComPact NSX400...630; ComPact NS630b...1600; ComPact NS1600b...3200
- Device short name
- IFE
- Product or component type
- Interface module
- Range compatibility
- Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact H; PowerPact PowerPact P; PowerPact PowerPact R
- Communication network type
- Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45; Universal Logic Plug on 2-port RJ45
- Web server
- Embedded HTTP server
- Mounting mode
- By clips
- Mounting support
- 35 mm DIN rail
- Control type
- By software
- Us rated supply voltage
- 24 V DC - 20...10 %
- Maximum supply current
- 3 A
- Current consumption
- 120 mA
- Connections - terminals
- RJ45 connector
- Product certifications
- GOST; cULus; FCC; CE
- Standards
- UL 60950; UL 508; IEC 60947-6-2; IEC 60950
- Height
- 105 mm
Key Features & Benefits
- IEC 60947-2 certified
- TMD / Micrologic trip units
- 36-150 kA breaking
- EverLink connections
- Full accessory ecosystem
- Motor-feeder capable
Industrial Applications in Saudi Arabia
- Main distribution
- Motor control centers
- Commercial buildings
- Industrial feeders
- Generator protection
- OEM panels
