Schneider LV434063 I/O (Input/Output) Application Module
Model: I/OP/N: LV434063
4-hour response · Pricing in SAR · Delivery across all KSA regions

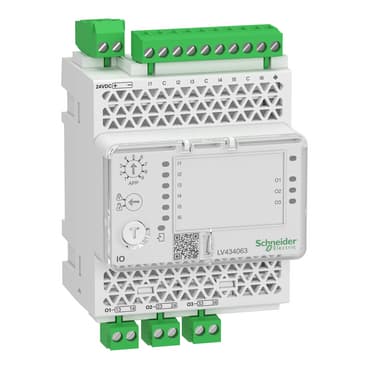

Schneider LV434063 I/O (Input/Output) Application Module
The Schneider Electric LV434063 is a i/o module from the Schneider Electric range. Ingress protection is IP2X connectors:. Mounting is by clips.
It is a genuine Schneider Electric product supplied with full manufacturer documentation and warranty through authorised channels.
Across Saudi Arabia, Schneider Electric products are specified daily by maintenance and projects teams at Saudi Aramco, SABIC affiliates, SWCC desalination plants, cement plants and Vision 2030 giga-projects including NEOM. Schneider Electric equipment is specified across Saudi industrial, commercial and infrastructure projects. Razz Middle East supports EPC contractors and plant buyers in Riyadh, Jeddah, Dammam, Jubail and Yanbu with local stock and expedited sourcing through our Jeddah, Dubai and India operations.
Buy the Schneider LV434063 I/O (Input/Output) Application Module in Saudi Arabia from Razz Middle East. We stock fast-moving Schneider Electric references in Jeddah and Dammam with GCC-wide delivery, respond to every RFQ within 4 hours, and supply genuine Schneider Electric products with manufacturer warranty, test certificates and SASO-compliant documentation. Contact our sales team for pricing, stock availability and technical support for LV434063.
Technical Specifications
Full specifications for the I/O
- Device short name
- I/O
- Product or component type
- I/O module
- Range compatibility
- Masterpact MasterPact MTZ; Masterpact MasterPact NT; Masterpact MasterPact NW; ComPact ComPact NSX; ComPact ComPact NS630b...1600; ComPact ComPact NS1600b...3200; PowerPact PowerPact J; PowerPact PowerPact L; PowerPact PowerPact H; PowerPact PowerPact P; PowerPact PowerPact R
- Product name
- Enerlin'X IO
- Communication network type
- Universal Logic Plug on 2 RJ45 connectors
- Us rated supply voltage
- 24 V DC - 20...10 %
- Current consumption
- 165 mA
- Electromagnetic compatibility
- Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2; Immunity to radiated fields 10 V/m conforming to EN/IEC 61000-4-3; Surge immunity test conforming to EN/IEC 61000-4-5
- Number of inputs
- 6 digital; 1 analog
- Input type
- Digital at state 1: 19.8…25.2 V - DC - 6.1…8.8 mA; Digital at state 0: 0…19.8 V - DC - 0 mA
- Number of outputs
- 3 digital
- Output type
- Digital: 250 V - AC - 5 A
- Cable length
- 10 m
- Mounting mode
- By clips
- Mounting support
- 35 mm DIN rail
- Control type
- By software
Key Features & Benefits
- Genuine Schneider Electric
- Full manufacturer warranty
- IEC-certified design
- Global spares availability
- SASO-compliant documentation
- Professional technical support
Industrial Applications in Saudi Arabia
- Industrial projects
- Commercial buildings
- Infrastructure
- OEM machinery
- Maintenance and MRO
- Panel building
Industrial Supplier in Saudi Arabia
Get a Quote for the Schneider LV434063 I/O (Input/Output) Application Module
We respond within 4 business hours. Send model I/O for competitive pricing in SAR with delivery across Saudi Arabia and the GCC.
Frequently Asked Questions — I/O
Common questions from buyers in Saudi Arabia and the GCC
