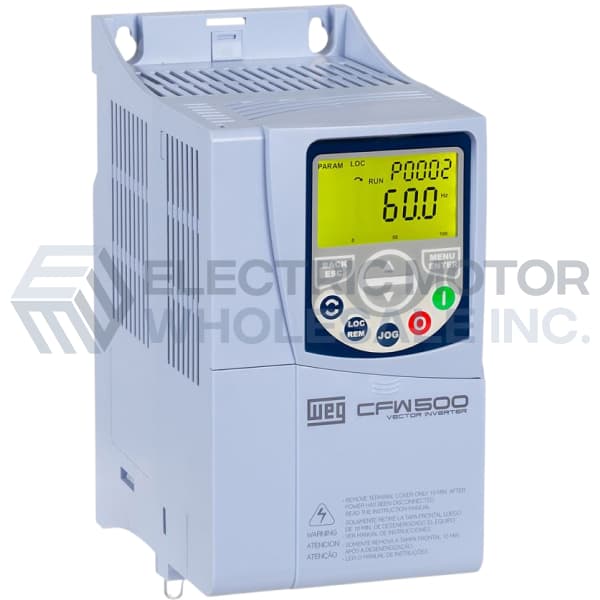

WEG CFW500 E 105 T4 VFD 37kW
Model: CFW500 E 105 T4P/N: WEG.CFW500-E-105-T4
4-hour response · Pricing in SAR · Delivery across all KSA regions
WEG CFW500 E 105 T4 VFD 37kW
WEG CFW500 E 105 T4 Variable Frequency Drive 37kW (model CFW500 E 105 T4)
WEG is a global leader in electric motors, drives and automation. The CFW500 series is WEG's compact high-performance VFD with advanced vector control, built-in EMC C2 filter, STO safety function, fieldbus ready. Razz Middle East is an authorised WEG distributor supplying CFW500 drives across Saudi Arabia for Aramco, SABIC, SWCC and NEOM.
The WEG CFW500 E 105 T4 delivers 37 kW output at 105A continuous, operating on the Saudi 380–415V 50Hz grid. The drive incorporates WEG's proven vector control algorithms for smooth motor speed regulation from 0 Hz to maximum frequency, with built-in PI regulator for closed-loop pressure or flow control in pump and fan applications. Comprehensive protective functions include under/over-voltage, over-current, over-temperature, ground fault, short circuit and stall protection, reducing unplanned downtime in critical Saudi industrial facilities.
Key specifications: Power 37 kW, Output current 105 A, Supply voltage 380-480V, Frequency 50/60 Hz, Control V/f and sensorless vector, Communication RS485/Modbus RTU standard, Protection IP20 (IP55 optional), Operating temperature -10 to +50°C, Compliance IEC 61800-5-1, CE, UL, SASO.
Saudi Arabia applications: CFW500 drives are widely deployed across Saudi Arabia: SWCC desalination plant feed and transfer pumps, Aramco pipeline booster pumps, SABIC chilled water and cooling tower fans, NEOM utility water distribution, municipal water authority variable-speed pumping, cement plant ID/FD fans (YACCO, QACO, YNBC), and industrial HVAC systems in Riyadh, Dammam and Jeddah. Energy savings of 30–50% versus direct-on-line starting make VFDs mandatory under the Saudi Energy Efficiency Programme (SEEC) for pump and fan loads above 7.5kW.
Razz Middle East supply: Razz Middle East stocks CFW500 drives in Saudi Arabia, offering 4-hour RFQ response, SAR pricing, WEG factory warranty, technical pre-sales support (drive sizing, cable specification, harmonic analysis) and after-sales commissioning assistance. Delivery to all major Saudi cities and direct to Aramco/SABIC site logistics.
Technical Specifications
Full specifications for the CFW500 E 105 T4
- Model
- CFW500 E 105 T4
- Power
- 37 kW
- Current
- 105 A
- Voltage
- 380-480V
- Frequency
- 50/60Hz
- Control
- V/f + Vector
- Protection
- IP20
Key Features & Benefits
- WEG vector control
- Built-in EMC filter
- RS485/Modbus RTU
- STO safety function
- IP20 standard
- IEC 61800-5-1 certified
Industrial Applications in Saudi Arabia
- Pump speed control
- Fan drives
- Compressors
- Conveyors
- HVAC
- Process drives
Industrial Supplier in Saudi Arabia
Get a Quote for the WEG CFW500 E 105 T4 VFD 37kW
We respond within 4 business hours. Send model CFW500 E 105 T4 for competitive pricing in SAR with delivery across Saudi Arabia and the GCC.
