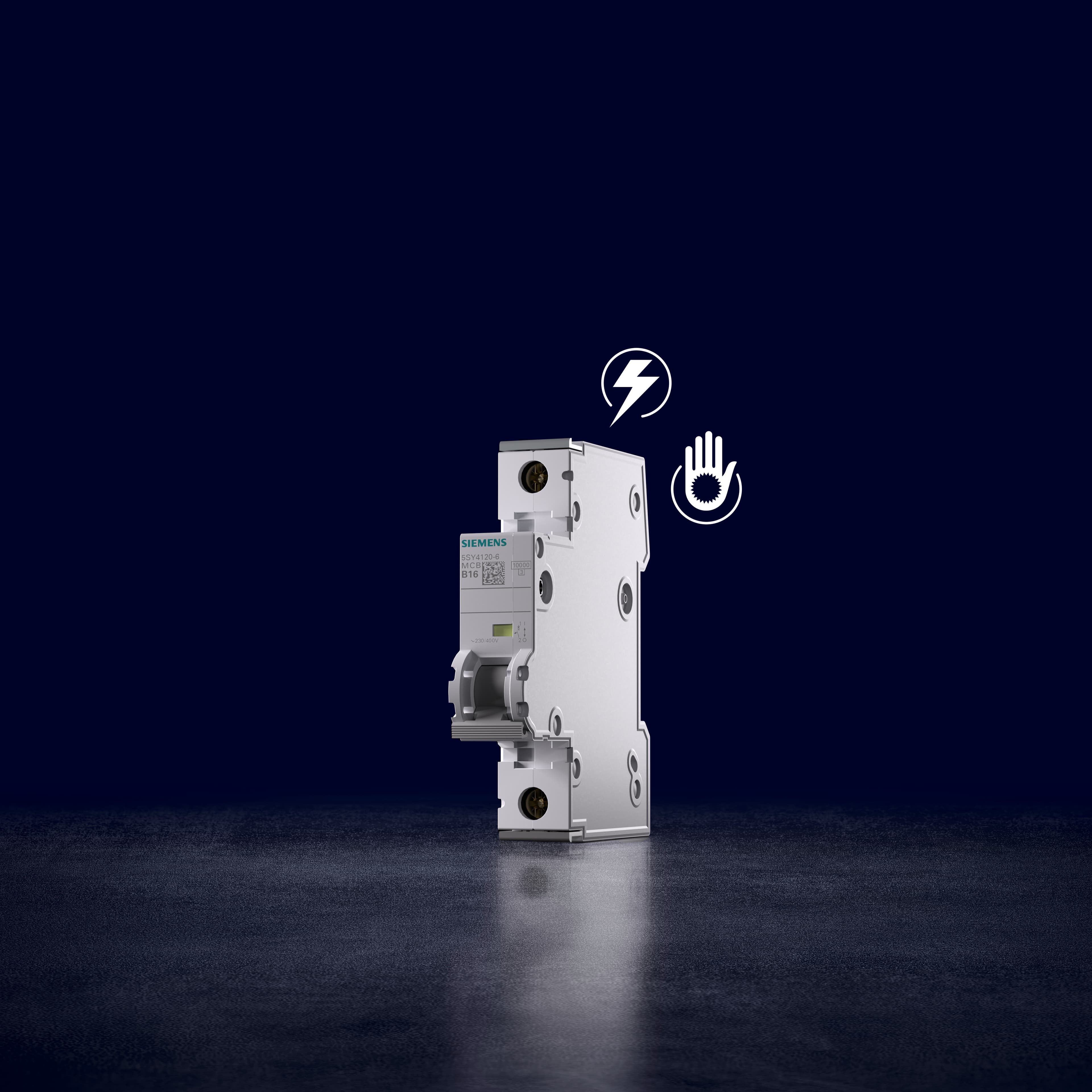

قاطع الدائرة المصغر سيمنز 5SL
رقم الموديل: 5SL6116-7
Rated Current: 0.5–63 AVoltage: 230/400 V ACBreaking Capacity: 6 kA (5SL4) / 10 kA (5SL6)Trip Characteristics: B / C / D
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل
قاطع الدائرة المصغر سيمنز 5SL — نظرة عامة
قاطع الدائرة المصغر سيمنز 5SL يوفر حماية حرارية-مغناطيسية موثوقة للدوائر النهائية بتيارات من 0.5 إلى 63 أمبير وخصائص B وC وD. يتميز بآلية تعمل بحرية من وضع المفتاح (trip-free) وقدرة قطع 10 كيلو أمبير في إصدار 5SL6.
المعيار القياسي في لوحات التوزيع السكنية والتجارية والصناعية في المملكة العربية السعودية. توفر راز الشرق الأوسط 5SL من جميع التيارات والأقطاب والخصائص من المخزون المحلي.
المواصفات الفنية
المواصفات الكاملة لـ 5SL6116-7
- Rated Current
- 0.5–63 A
- Voltage
- 230/400 V AC
- Breaking Capacity
- 6 kA (5SL4) / 10 kA (5SL6)
- Trip Characteristics
- B / C / D
- Poles
- 1P / 1P+N / 2P / 3P / 4P
- Mounting
- DIN rail TS35
- Accessories
- Auxiliary contact, alarm contact, remote handle
- Standard
- IEC 60898-1 / IEC 60947-2
المميزات والفوائد
- Trip-free mechanism opens the main contacts independently of handle position during a short-circuit event, preventing contact welding under sustained fault current — the critical safety feature that distinguishes the 5SL from inferior non-trip-free circuit breakers.
- 10 kA breaking capacity in the 5SL6 variant covers the prospective fault currents found in commercial and industrial distribution boards near transformer substations, satisfying the higher Icn requirements increasingly specified by Saudi project electrical engineers.
- B characteristic (3–5× In trip) for resistive and lightly inductive loads, C characteristic (5–10× In) for general motor and transformer circuits, and D characteristic (10–20× In) for high inrush loads cover all standard final circuit protection requirements from a single product family.
- Snap-on auxiliary contact (1NO+1NC) and alarm contact accessories mount without tools in under 30 seconds, providing circuit status signalling for BMS integration and fault alarm outputs for remote monitoring in large commercial building installations.
- Consistent DIN rail footprint with uniform 17.5 mm module width per pole allows precise panel space planning and enables board capacity modifications — adding or replacing breakers — without rewiring adjacent devices.
- 1P+N single-module format for single-phase circuits with neutral disconnection provides simultaneous phase and neutral protection in a single 17.5 mm width, doubling protection effectiveness versus phase-only MCBs for final circuits in Saudi residential and light commercial panels.
- Full product range from 0.5 A to 63 A in a single series covers all final circuit protection requirements from lighting (6–16 A) through socket outlets (16–32 A) to small motors and HVAC (40–63 A) without specifying different product families.
التطبيقات الصناعية
- Residential villa and apartment consumer unit final circuit protection across Saudi Arabia's major housing developments, where 5SL MCBs in combination with 5SV RCCBs create coordinated protection assemblies from Siemens' consistent product ecosystem.
- Commercial office tower and retail centre distribution board branch circuit protection in Riyadh's King Abdullah Financial District and Jeddah's Corniche, where 5SL6 10 kA breaking capacity covers high fault levels near utility transformer substations.
- Industrial panel feeder and machine protection circuits in MODON industrial estates, where C and D characteristic 5SL MCBs handle transformer and motor circuit inrush currents without nuisance tripping during normal starting.
- Hospital final circuit protection in patient care areas and operating theatres, where the trip-free mechanism's positive safety behaviour under fault conditions satisfies Saudi Ministry of Health electrical installation requirements for healthcare facilities.
- Data centre and server room distribution board protection, where 5SL6 high breaking capacity combined with auxiliary contact monitoring provides both fault protection and remote circuit status visibility through the facility's DCIM system.
- Government building and institutional facility distribution boards under Vision 2030 infrastructure programmes, where SASO-approved 5SL MCBs satisfy Saudi standards compliance requirements for publicly-funded building electrical installations.
- Panel builder stock for MCC and LV switchboard assembly projects throughout the Kingdom, where 5SL MCBs serve as auxiliary and control circuit protection for PLC power supplies, instrument transformers, and control panel supplies.
مورد معتمد في المملكة العربية السعودية
احصل على عرض سعر لـ قاطع الدائرة المصغر سيمنز 5SL
نرد خلال 4 ساعات. أرسل رقم الموديل 5SL6116-7 للحصول على سعر تنافسي مع التسليم في أنحاء المملكة العربية السعودية والخليج.
