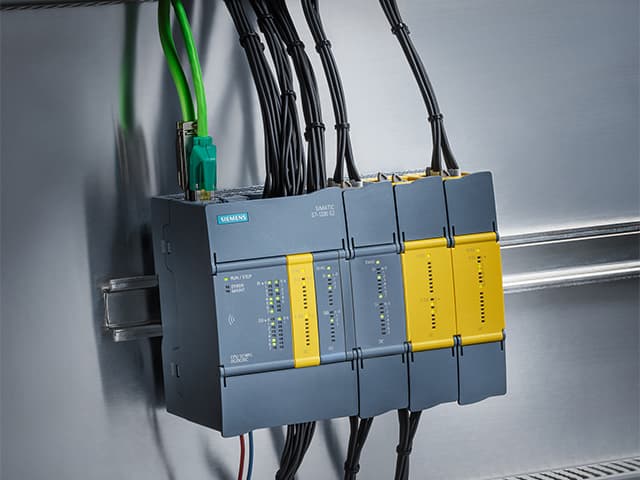

وحدة التحكم SIMATIC S7-1200 من سيمنز
رقم الموديل: 6ES7214-1AG40-0XB0
CPU Range: 1211C to 1217C (standard and F-CPU safety)Onboard I/O: 6–14 DI, 4–10 DO, 2 AI (CPU 1214C+)Expansion: Up to 8 Signal Modules + 2 Signal Boards (up to 284 I/O)Communication: PROFINET (1 port onboard), optional PROFIBUS CM
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل
وحدة التحكم SIMATIC S7-1200 من سيمنز — نظرة عامة
وحدة SIMATIC S7-1200 من سيمنز هي PLC المدمج الأكثر انتشاراً في السوق السعودي للأتمتة الصغيرة والمتوسطة، تغطي من CPU 1211C إلى CPU 1217C مع PROFINET مدمج و16 حلقة PID وتحكم في حركة حتى 4 محاور.
يُستخدم في لوحات HVAC والآلات الصغيرة والمضخات والمباني في المملكة. توفر راز الشرق الأوسط S7-1200 مع دعم برمجة TIA Portal.
المواصفات الفنية
المواصفات الكاملة لـ 6ES7214-1AG40-0XB0
- CPU Range
- 1211C to 1217C (standard and F-CPU safety)
- Onboard I/O
- 6–14 DI, 4–10 DO, 2 AI (CPU 1214C+)
- Expansion
- Up to 8 Signal Modules + 2 Signal Boards (up to 284 I/O)
- Communication
- PROFINET (1 port onboard), optional PROFIBUS CM
- PID Control
- Up to 16 loops (TIA Portal PID function)
- Motion Control
- Up to 4 axes (CPU 1214C+, PROFINET drives)
- High-Speed I/O
- Up to 6 HSC at 100 kHz, 4 PTO at 1 MHz
- Programming
- TIA Portal V14+ (LAD, FBD, STL, SCL)
- Safety
- F-CPUs available (SIL 2 / PLd)
المميزات والفوائد
- Single onboard PROFINET port provides simultaneous TIA Portal programming access, KTP HMI communication, and distributed I/O (ET 200SP) fieldbus without a separate communications processor, reducing panel component count and cost.
- Integrated PID function for up to 16 independent control loops with auto-tuning capability covers all standard process control requirements — temperature, pressure, flow, level — in HVAC, water treatment, and light process applications without additional modules.
- Motion Control function on CPU 1214C and above controls up to 4 PROFINET-connected positioning axes for conveyor positioning, dosing pump stroke control, and single-axis machine tool applications.
- Signal Board (SB) expansion within the CPU housing adds up to 4 additional I/O points without consuming Signal Module slots, covering small I/O expansion requirements that would otherwise require a full SM module.
- Fail-safe CPU 1214FC and 1215FC integrate standard and SIL 2-rated safety automation on a single CPU, enabling safety instrumented system applications — emergency shutdown, pressure relief, machine guarding — without a separate safety controller.
- 6 High-Speed Counters at up to 100 kHz and 4 Pulse Train Outputs at up to 1 MHz provide high-speed encoder reading and step-direction axis control for positioning and speed measurement applications without additional counter modules.
- TIA Portal programming environment — identical to that used for S7-1500 — means engineers trained on one platform can program both without relearning tools, reducing training cost and enabling a single engineering team to cover projects of any scale.
التطبيقات الصناعية
- Commercial building HVAC control panels in Riyadh's commercial towers and Jeddah's hotels, where S7-1200 CPUs with PID control manage AHU supply air temperature, chilled water differential pressure, and VAV box positioning from a single controller.
- Small water treatment and pumping system PLC controllers for NWC and private utility operators across the Kingdom, where PROFINET communication to SINAMICS G120X drives and SENTRON PAC3200 power meters provides a complete integrated control solution.
- Agricultural irrigation system automation controllers for centre-pivot and drip irrigation networks in Qassim and Al-Ahsa, where S7-1200 CPUs manage pump schedules, flow metering, and fertiliser dosing without the cost of larger PLC systems.
- Machine tool CNC auxiliary PLC for Saudi precision manufacturing facilities, where the S7-1200 handles machine guarding, axis limit switches, coolant control, and tool changer sequencing as a subordinate controller to the CNC system.
- Petrochemical plant utility and auxiliary system control in SABIC facilities, where S7-1200 F-CPU safety variants handle machine guarding and emergency shutdown in lower-risk utility areas at SIL 2 without requiring an S7-1500 F-CPU.
- Building access control and security panel integration for commercial and government facilities under Vision 2030 infrastructure programmes, where S7-1200 Ethernet connectivity provides interface between physical security systems and building management platforms.
- Standalone packaging machine PLC for Saudi food and FMCG manufacturers, where S7-1200 Motion Control manages one to four servo axes for indexing, filling, and sealing operations with PROFINET-connected SINAMICS S120 servo drives.
مورد معتمد في المملكة العربية السعودية
احصل على عرض سعر لـ وحدة التحكم SIMATIC S7-1200 من سيمنز
نرد خلال 4 ساعات. أرسل رقم الموديل 6ES7214-1AG40-0XB0 للحصول على سعر تنافسي مع التسليم في أنحاء المملكة العربية السعودية والخليج.
