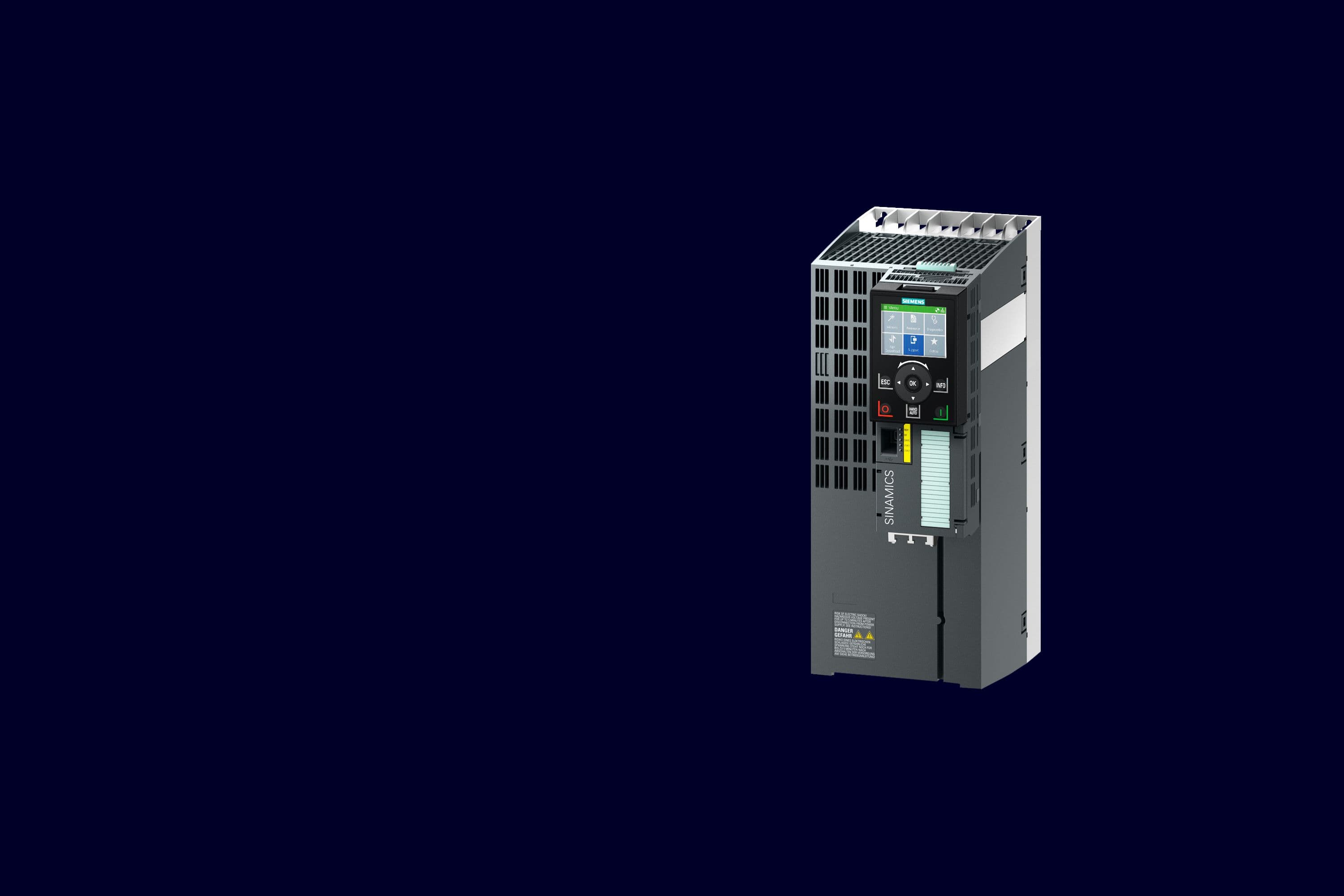

محرك SINAMICS G120 من سيمنز
رقم الموديل: 6SL3210-1KE21-3AF1
Power Range: 0.37–250 kWVoltage: 200–480 V ACControl Units: CU240E-2 / CU250S-2Control Modes: Sensorless vector / V/f / closed-loop vector
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل
محرك SINAMICS G120 من سيمنز — نظرة عامة
محرك SINAMICS G120 من سيمنز هو محرك سرعة متغير معياري للتطبيقات الصناعية، يتميز بهيكل وحدة تحكم قابلة للفصل (CU) ووحدة طاقة (PM) تبسّط الصيانة وإدارة قطع الغيار. يغطي نطاقاً من 0.37 إلى 250 كيلوواط مع دعم PROFINET وPROFIBUS ووظائف سلامة مدمجة STO وSS1 معتمدة على SIL 2.
يُستخدم على نطاق واسع في المملكة العربية السعودية في منشآت البتروكيماويات ومحطات المياه ومشاريع HVAC الكبيرة. توفر راز الشرق الأوسط محركات G120 مع دعم التشغيل الكامل عبر TIA Portal.
المواصفات الفنية
المواصفات الكاملة لـ 6SL3210-1KE21-3AF1
- Power Range
- 0.37–250 kW
- Voltage
- 200–480 V AC
- Control Units
- CU240E-2 / CU250S-2
- Control Modes
- Sensorless vector / V/f / closed-loop vector
- Enclosure
- IP20 (PM240) / IP55 (PM240-2)
- Communication
- PROFINET, PROFIBUS, USS, Modbus RTU
- Safety Functions
- STO, SS1 (SIL 2 / PLd)
- Ambient Temperature
- -10 to +50°C
المميزات والفوائد
- Detachable CU and PM modular architecture allows Control Unit swap without disturbing motor cabling or power connections — replacing a CU takes under 30 minutes on site, with all parameters automatically restored from the CU's integrated memory.
- PROFINET and PROFIBUS communication built into the CU240E-2 enables full integration into TIA Portal automation projects, providing real-time diagnostics, parameter access, and firmware updates over the plant network without additional gateway hardware.
- Safe Torque Off (STO) and Safe Stop 1 (SS1) safety functions certified to SIL 2 / PLd (EN ISO 13849-1) eliminate the need for external safety relay modules in most machine guarding and emergency stop applications.
- PM240-2 Power Module in IP55 enclosure rating provides protection against dust and water jets, enabling direct panel-free installation in Saudi Arabia's dusty outdoor pump stations and process areas without a separate enclosure cabinet.
- Sensorless vector control delivers torque accuracy of ±5% without encoder feedback across the full speed range, covering demanding conveyor, compressor, and process pump applications with stable speed regulation under varying load.
- Energy efficiency class IE2 compliance for the complete drive system meets Saudi Energy Efficiency Program (SEEP) requirements, supporting green building and industrial energy certification programs under Vision 2030.
- Comprehensive accessory ecosystem including Basic Operator Panel (BOP-2), Intelligent Operator Panel (IOP-2), and PC commissioning tool Startdrive within TIA Portal reduces setup time and provides multi-language operator interface options.
التطبيقات الصناعية
- Centrifugal pump drives at SABIC and SADAF petrochemical facilities in Jubail Industrial City, where PROFINET integration allows centralized monitoring from the TIA Portal SCADA system and remote fault diagnostics during unattended night operation.
- HVAC air handling unit fan drives in commercial towers across Riyadh's King Abdullah Financial District and Jeddah's Corniche developments, where IP55 Power Modules allow installation in rooftop plant rooms exposed to sand and humidity.
- Conveyor and bucket elevator drives at cement and aggregate quarrying operations in Riyadh, Tabuk, and Jizan, where the modular CU/PM design allows fast on-site replacement during scheduled maintenance windows.
- NWC water booster station pump drives across the Kingdom, where the G120's multi-pump control capability and sleep/wake function reduces pump energy consumption during low-demand overnight periods.
- Compressor drives at ARAMCO gas processing facilities, where sensorless vector control maintains precise speed under varying gas pressure conditions without the cost and complexity of encoder feedback installation.
- NEOM utility infrastructure motor drives, where PROFINET IRT communication and integrated energy metering support the project's Industry 4.0 and sustainability performance tracking requirements.
- MCC panel integration for Saudi Vision 2030 industrial projects assembled by SEC-approved panel builders, where standardisation on G120 simplifies spare parts, commissioning tools, and operator training across multiple project sites.
