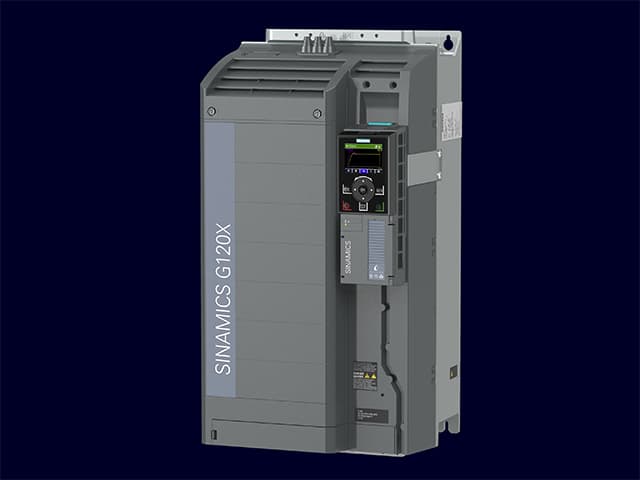

محرك SINAMICS G120X للمضخات والمراوح من سيمنز
رقم الموديل: 6SL3220-2YE32-0AF0
Power Range: 0.75–630 kWVoltage: 380–480 V / 500–690 V ACControl Modes: V/f, sensorless vectorEnclosure: IP20 / IP55
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل
محرك SINAMICS G120X للمضخات والمراوح من سيمنز — نظرة عامة
محرك SINAMICS G120X من سيمنز مُحسَّن خصيصاً لتطبيقات المضخات والمراوح والضواغط، يغطي نطاقاً من 0.75 إلى 630 كيلوواط مع خوارزميات توفير الطاقة وBACnet/IP المدمج والتحكم في مضخات متعددة.
يُستخدم في محطات ضخ المياه ومحطات التبريد المحلية وأنظمة HVAC الكبيرة في المملكة العربية السعودية. توفر راز الشرق الأوسط G120X مع خدمات تكامل BACnet/IP الكاملة.
المواصفات الفنية
المواصفات الكاملة لـ 6SL3220-2YE32-0AF0
- Power Range
- 0.75–630 kW
- Voltage
- 380–480 V / 500–690 V AC
- Control Modes
- V/f, sensorless vector
- Enclosure
- IP20 / IP55
- Communication
- PROFINET, PROFIBUS, BACnet/IP, Modbus TCP
- Built-in Functions
- PID, multi-pump (4 pumps), energy-saving flux optimizer
- Safety
- STO (SIL 2 / PLd)
- Ambient Temperature
- -10 to +50°C
المميزات والفوائد
- Built-in BACnet/IP communication enables native integration to any building management system without add-on gateway hardware, making the G120X the natural choice for commercial HVAC, district cooling, and smart building projects specifying open BMS protocols.
- Multi-pump cascade control manages up to four pumps automatically — adding and removing pumps to match demand variation — without a separate pump controller PLC, delivering a complete pump station solution from a single drive.
- Automatic energy-saving flux optimizer continuously calculates the optimal motor flux for the actual load condition, reducing motor losses by up to 20% during part-load pump and fan operation versus fixed-flux drives.
- Pre-configured pump and fan application macros set up the drive correctly for the most common duties in under five minutes, reducing commissioning time and the risk of parameter errors on project handover.
- IP55 enclosure option with -10°C to +50°C ambient rating enables outdoor installation in pump pits, rooftop plant rooms, and desert process areas across Saudi Arabia without additional enclosure cabinets or derating.
- Anti-cavitation and dry-run detection functions monitor the drive's power signature to identify low-inlet-pressure and air-locked conditions, protecting pump impellers and mechanical seals before damage occurs.
- Energy consumption display and kWh logging with cost calculation directly on the drive's operator panel supports Saudi Energy Efficiency Program (SEEP) reporting and Vision 2030 sustainability metrics for facility operators.
التطبيقات الصناعية
- NWC municipal water booster station pump drives across Riyadh, Jeddah, Dammam, and the Eastern Province, where multi-pump cascade control eliminates additional pump controllers and energy metering satisfies regulatory reporting requirements.
- SWCC and MARAFIQ desalination pre-treatment and transfer pump facilities, where the G120X's IP55 robustness and anti-cavitation protection ensure reliable 24/7 operation in corrosive coastal salt-laden atmospheres.
- TABREED district cooling plant chilled water pump drives serving mixed-use developments across Saudi Arabia's major cities, where BACnet/IP communication integrates seamlessly with the district plant's centralised management system.
- NEOM and Red Sea Project utility infrastructure pump systems, where BACnet/IP connectivity and energy monitoring align with the projects' smart infrastructure and ESG performance reporting obligations.
- Commercial HVAC air handling unit and chilled water pump drives in hotels and commercial towers across Jeddah and Riyadh, where variable-speed control delivers 40–50% fan and pump energy savings versus fixed-speed DOL starters.
- ARAMCO utility water injection and cooling water pump systems in the Eastern Province, where dry-run and anti-cavitation protection prevent pump failures in critical process cooling loops operating under variable inlet pressure.
- Industrial process fan and exhaust system drives at SABIC and Petro Rabigh facilities in Jubail and Yanbu, where the 630 kW ceiling covers the largest centrifugal fans without stepping up to a cabinet drive solution.
