محرك SINAMICS G150 في خزانة من سيمنز
رقم الموديل: 6SL3710-1GE37-4AA3
Power Range: 75–2700 kWVoltage: 380–480 V / 500–690 V ACFront End: Basic Line Module (diode) or Active Line Module (regenerative)Enclosure: IP21 / IP54, IEC 61439-1 type-tested cabinet
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل

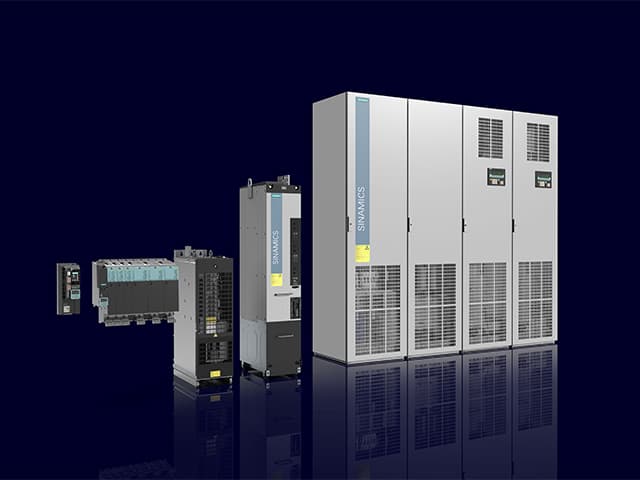

محرك SINAMICS G150 في خزانة من سيمنز — نظرة عامة
محرك SINAMICS G150 من سيمنز هو محرك خزانة مُجمَّع مسبقاً ومختبر الأنواع يغطي 75 إلى 2700 كيلوواط مع خيار Active Line Module للتجديد الكامل وPROFINET وقياس الطاقة المدمج.
يُستخدم في محطات تحلية SWCC والضواغط في ARAMCO وSABIC والمراوح الكبيرة في المملكة. توفر راز الشرق الأوسط G150 مع خدمات التركيب والتشغيل الكاملة.
المواصفات الفنية
المواصفات الكاملة لـ 6SL3710-1GE37-4AA3
- Power Range
- 75–2700 kW
- Voltage
- 380–480 V / 500–690 V AC
- Front End
- Basic Line Module (diode) or Active Line Module (regenerative)
- Enclosure
- IP21 / IP54, IEC 61439-1 type-tested cabinet
- Control
- Sensorless vector / V/f
- Communication
- PROFINET, PROFIBUS, Modbus
- Cooling
- Forced air
- Safety
- STO (SIL 2)
المميزات والفوائد
- Factory-assembled type-tested cabinet with integrated input contactor, fuses, output reactor, and drive electronics eliminates site assembly work, enabling direct cable connection and reducing site commissioning to parameter setting and functional test.
- Active Line Module (ALM) option returns braking energy to the supply grid rather than heat dissipation in resistors, reducing total system energy consumption by up to 30% in applications with significant braking duty.
- Power range up to 2700 kW covers Saudi Arabia's largest single motor drives — desalination high-pressure pumps, large gas compressors, mine conveyor main drives — in a single drive product without stepping to MV drive technology.
- IEC 61439-1 type-tested cabinet construction provides the documentation evidence required by ARAMCO and SABIC engineering standards for LV drive panel installations in Saudi industrial projects.
- PROFINET communication with drive-integrated energy metering provides Industry 4.0 data connectivity for predictive maintenance analytics and energy consumption reporting from TIA Portal.
- IP54 enclosure option allows installation in areas with moderate dust and water splash, reducing the need for dedicated air-conditioned drive rooms for large motor installations in process plant environments.
- Coordinated protection with upstream SENTRON 3WL or 3VA circuit breakers provides a protection coordination solution satisfying the LV distribution protection scheme requirements of Saudi industrial projects.
التطبيقات الصناعية
- SWCC desalination high-pressure pump drives at Red Sea and Arabian Gulf desalination plants, where G150 cabinet drives arrive factory-tested and ready for connection to reduce project schedule risk on critical national water infrastructure.
- ARAMCO gas processing facility compressor drives in the Eastern Province, where ALM regenerative G150 drives recover compressor deceleration energy during shutdown sequences.
- Large induced draught and forced draught fan drives at Saudi independent power plants and cement kilns, where 500–1500 kW G150 drives provide variable speed control reducing fan energy consumption by 40–60%.
- Ma'aden mining facility main conveyor drives at the phosphate and Wa'ad Al-Shamal complexes, where ALM regenerative G150 drives recover energy during loaded downhill conveyor operation.
- NEOM utility pumping infrastructure large motor drives, where G150 PROFINET and energy metering align with the project's smart infrastructure and sustainability reporting requirements.
- Saudi cement kiln main drive and cement mill drives, where G150 vector control provides precise speed regulation for kiln rotation and ball mill operation.
- Desalination pre-treatment pump drives at private RO desalination plants, where turnkey G150 cabinet drives reduce project installation contractor scope and risk.
