siemens
نظام محركات سيرفو SINAMICS S120 من سيمنز
رقم الموديل: 6SL3120-2TE21-8AD0
Power Range: 0.12–4500 kWVoltage: 380–480 V / 500–690 V ACControl Modes: Servo, Vector, V/fDC Bus: Common Active Line Module
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل

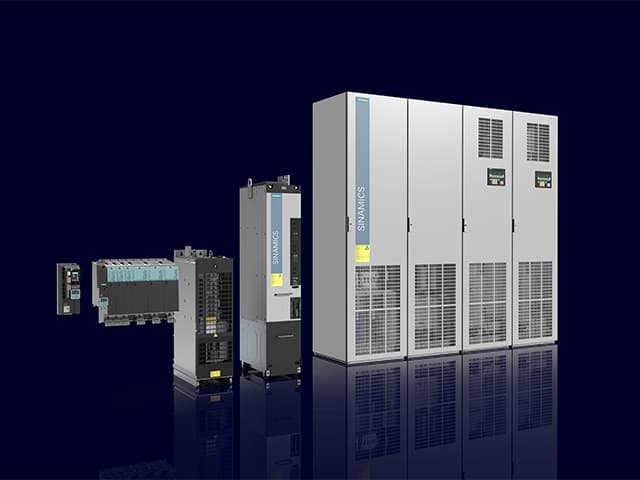

نظام محركات سيرفو SINAMICS S120 من سيمنز — نظرة عامة
نظام SINAMICS S120 من سيمنز هو نظام محركات سيرفو وناقل عالي الأداء يعتمد على طبولوجيا حافلة DC مشتركة تسترجع طاقة الكبح وتعيد توزيعها. يوفر تحكماً متزامناً متعدد المحاور مع PROFINET IRT بدورة زمنية 250 ميكروثانية وأمان SIL 3.
يُستخدم في المملكة العربية السعودية لتطبيقات التصنيع المتقدم والطباعة والتعبئة والأتمتة متعددة المحاور. تقدم راز الشرق الأوسط هندسة وتشغيل أنظمة S120 الكاملة.
المواصفات الفنية
المواصفات الكاملة لـ 6SL3120-2TE21-8AD0
- Power Range
- 0.12–4500 kW
- Voltage
- 380–480 V / 500–690 V AC
- Control Modes
- Servo, Vector, V/f
- DC Bus
- Common Active Line Module
- Current Loop
- <2 ms bandwidth
- Communication
- PROFINET IRT (250 μs cycle)
- Safety
- STO, SS1, SS2, SOS, SLS (SIL 3 / PLe)
- Encoder Interfaces
- EnDat 2.2, SSI, HTL/TTL, resolver, DRIVE-CLiQ
المميزات والفوائد
- Common DC bus with Active Line Module enables regenerative energy sharing between decelerating and accelerating axes, reducing total system energy consumption by 15–30% in multi-axis packaging and printing machines versus individual drives.
- Current loop bandwidth of less than 2 ms and speed control bandwidth exceeding 700 Hz delivers the dynamic stiffness required for high-precision printing register control, machining centre contouring, and die-cut registration applications.
- PROFINET IRT isochronous communication with cycle times down to 250 μs synchronises multiple axis positions across a machine with deterministic precision, enabling electronic gearing and cam profiles without dedicated motion bus hardware.
- Safety Integrated library certified to SIL 3 / PLe includes STO, SS1, SS2, SOS, and SLS functions that allow machine designers to achieve high safety integrity ratings without adding an external safety PLC to the control architecture.
- DRIVE-CLiQ digital interface between drive and motor eliminates analog signal noise in encoder feedback, providing absolute position data with immunity to electromagnetic interference in the harsh environments of petrochemical and manufacturing plants.
- Booksize and cabinet-mount form factors cover applications from sub-kilowatt servo axes in compact machine tools to megawatt-class multi-axis drives in large industrial presses and extrusion lines.
- TIA Portal SCOUT engineering integration allows S120 drive commissioning within the same Siemens automation engineering environment used for S7-1500 PLCs and SIMATIC HMI panels, reducing engineering tool proliferation on complex projects.
التطبيقات الصناعية
- Precision printing machine main and register drives at Saudi printing companies in Riyadh and Jeddah, where PROFINET IRT synchronisation maintains print register accuracy to within ±0.1 mm across multi-unit web press configurations.
- Packaging line multi-axis servo drives for Saudi food and pharmaceutical manufacturers, where the common DC bus energy recovery reduces energy costs and the SIL 3 safety functions satisfy EU market machine safety export requirements.
- CNC machining centre main spindle and axis drives at precision parts manufacturers supplying ARAMCO and Saudi Aerospace & Defence projects, where servo bandwidth exceeding 700 Hz maintains surface finish tolerances.
- Robotics and gantry handling system drives in automotive component manufacturing facilities in the King Abdullah Economic City, where S120 PROFINET IRT provides the deterministic communication required for coordinated multi-robot cells.
- Extrusion line main drive and haul-off drive systems at Saudi polymer processing facilities in Jubail, where torque accuracy and common DC bus operation maintain product dimensional consistency throughout the line.
- Die-cutting and converting machine servo drives for Saudi packaging OEMs, where electronic cam profiles replace mechanical cams to deliver flexible repeat-length changes without tooling modifications.
- Pharmaceutical tablet press and filling machine servo drives at Saudi healthcare manufacturing facilities developing under Vision 2030, where SIL 3 safety and PROFINET IRT enable GMP-compliant machine validation.
مورد معتمد في المملكة العربية السعودية
احصل على عرض سعر لـ نظام محركات سيرفو SINAMICS S120 من سيمنز
نرد خلال 4 ساعات. أرسل رقم الموديل 6SL3120-2TE21-8AD0 للحصول على سعر تنافسي مع التسليم في أنحاء المملكة العربية السعودية والخليج.
أسئلة شائعة حول نظام محركات سيرفو SINAMICS S120 من سيمنز
أكثر الأسئلة شيوعاً من العملاء في المملكة العربية السعودية
