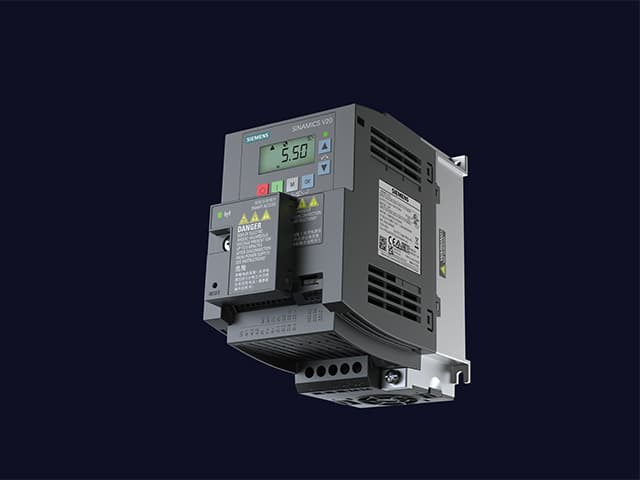

محرك SINAMICS V20 الأساسي من سيمنز
رقم الموديل: 6SL3210-5BB21-5UV1
Power Range: 0.12–15 kWVoltage: 200–240 V (1ph/3ph) / 380–480 V (3ph)Control Mode: V/fEnclosure: IP20
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل
محرك SINAMICS V20 الأساسي من سيمنز — نظرة عامة
محرك SINAMICS V20 من سيمنز هو محرك سيمنز الأساسي منخفض التكلفة للتطبيقات البسيطة، يغطي 0.12 إلى 15 كيلوواط مع إعداد في 10 دقائق باستخدام الماكروهات ودعم USS وModbus RTU.
يُستخدم على نطاق واسع في المملكة للتطبيقات التجارية والصناعية الخفيفة. توفر راز الشرق الأوسط V20 من المخزون المحلي لجميع التيارات والجهود.
المواصفات الفنية
المواصفات الكاملة لـ 6SL3210-5BB21-5UV1
- Power Range
- 0.12–15 kW
- Voltage
- 200–240 V (1ph/3ph) / 380–480 V (3ph)
- Control Mode
- V/f
- Enclosure
- IP20
- Communication
- USS, Modbus RTU (RS-485)
- Operator Panel
- BOP (built-in) / IOP (optional)
- Setup Time
- <10 minutes using Connection Macros
- Ambient Temperature
- -10 to +50°C
المميزات والفوائد
- Six pre-programmed Connection Macros and Application Macros configure the drive for pump, fan, conveyor, or compressor duty in under 10 minutes using only the front-panel BOP buttons — no PC, laptop, or commissioning tool required.
- Modbus RTU and USS communication built into the RS-485 terminal enables PLC integration without additional fieldbus adapter hardware, keeping installation cost low for simple automation applications.
- Integrated braking resistor connection terminal eliminates the need for a separate external brake chopper unit in applications requiring controlled deceleration, reducing panel component count and cost.
- Auto-restart after power failure automatically restores pump or fan operation after supply restoration without operator intervention — valuable in Saudi Arabia's areas with occasional voltage fluctuations.
- Real-time energy consumption display on the BOP shows instantaneous power draw and calculates running cost estimates, helping facility managers demonstrate payback versus fixed-speed starters to building owners.
- Energy-saving V/f mode with automatic voltage boost reduces motor iron losses during light load operation, extending motor insulation life and reducing power consumption during low-demand periods.
- Compact ultra-book design in frames FSA through FSD with widths from 68 mm to 143 mm allows multiple V20 drives to be installed side-by-side in space-constrained panels without exceeding thermal limits.
التطبيقات الصناعية
- Simple pump and fan speed control in commercial buildings, retail complexes, and light industrial units across Riyadh, Jeddah, and Dammam, where Modbus RTU communication satisfies BMS integration requirements at minimum hardware cost.
- Irrigation and landscaping pump drives for residential compounds, golf courses, and public parks across Saudi Arabia, where the auto-restart function maintains watering schedules through overnight power fluctuations without site attendance.
- Small conveyor and roller table drives in light manufacturing workshops and packaging operations in MODON industrial estates, where the 10-minute macro setup allows fast changeover between different motor sizes.
- Water feature and fountain pump drives in shopping malls, hotel lobbies, and public spaces across the Kingdom, where the V20's small footprint fits in the limited electrical space typical of architectural water feature installations.
- Exhaust fan and air handling drives in server rooms, battery rooms, and electrical substations, where auto-restart after power failure ensures ventilation resumes automatically when supply is restored.
- Compressor unloader drives in light industrial compressed-air systems, where V/f control provides smooth starting that extends compressor valve and belt life compared to direct-on-line starting.
- Small centrifugal pump drives in food service kitchen equipment and commercial laundry machinery, where the simple BOP commissioning allows non-specialist electricians to set up and adjust drive parameters without training.
مورد معتمد في المملكة العربية السعودية
احصل على عرض سعر لـ محرك SINAMICS V20 الأساسي من سيمنز
نرد خلال 4 ساعات. أرسل رقم الموديل 6SL3210-5BB21-5UV1 للحصول على سعر تنافسي مع التسليم في أنحاء المملكة العربية السعودية والخليج.
أسئلة شائعة حول محرك SINAMICS V20 الأساسي من سيمنز
أكثر الأسئلة شيوعاً من العملاء في المملكة العربية السعودية
