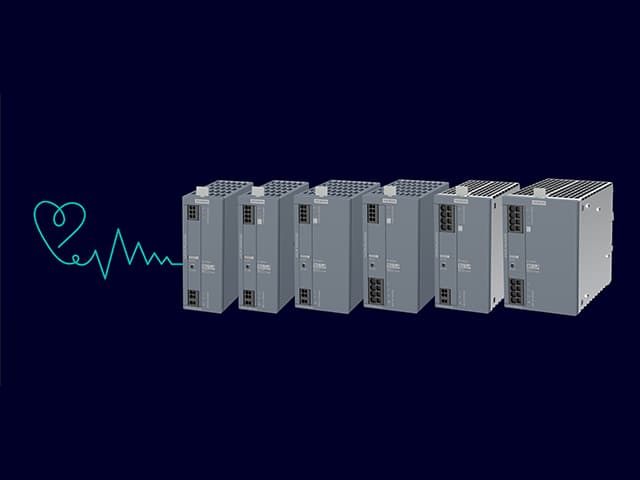

مزود الطاقة SITOP PSU100S 24 فولت DC من سيمنز
رقم الموديل: 6EP1336-3BA10
Input Voltage: 85–264 V AC (auto-range), 350–550 V DCOutput Voltage: 24 V DC (adjustable 22.5–28.5 V)Output Current: 3.5 A / 5 A / 10 A / 20 A / 40 AEfficiency: >90% (at full load)
متوفر — يُشحن داخل المملكة العربية السعودية
نرد خلال 4 ساعات عمل · الأسعار بالريال السعودي · توصيل لجميع مدن المملكة
منتجات أصلية 100%
رد خلال 4 ساعات
توصيل لجميع أنحاء المملكة
دعم فني متكامل
مزود الطاقة SITOP PSU100S 24 فولت DC من سيمنز — نظرة عامة
مزود الطاقة SITOP PSU100S من سيمنز هو مزود طاقة 24 فولت DC الصناعي المعياري للتركيب على DIN Rail بكفاءة أكثر من 90٪ وتيارات من 3.5 إلى 40 أمبير على إدخال 85–264 فولت AC مع تشغيل متوازي للازدواجية وخرج تأكيد الطاقة.
المعيار القياسي في لوحات SIMATIC S7-1200/1500 ومراكز التحكم في المحركات ومحطات SIPROTEC في جميع أنحاء المملكة. توفر راز الشرق الأوسط SITOP PSU100S من جميع التيارات من المخزون المحلي.
المواصفات الفنية
المواصفات الكاملة لـ 6EP1336-3BA10
- Input Voltage
- 85–264 V AC (auto-range), 350–550 V DC
- Output Voltage
- 24 V DC (adjustable 22.5–28.5 V)
- Output Current
- 3.5 A / 5 A / 10 A / 20 A / 40 A
- Efficiency
- >90% (at full load)
- Ripple
- <200 mV peak-to-peak
- Protection
- Overload, short-circuit (auto-restart)
- Signalling Output
- Power-good relay contact (250 V AC, 4 A)
- Mounting
- DIN rail TS35
- Width
- 45 mm (3.5 A) to 145 mm (40 A)
- Standard
- IEC 61010-2-201
المميزات والفوائد
- Efficiency exceeding 90% at full load limits panel heat dissipation to under 10% of output power — the 40 A version adds less than 107 W to the automation cabinet — enabling sealed IP54 panels without forced ventilation or air conditioning in most Saudi environments.
- Wide input range of 85–264 V AC auto-selects for all single-phase supply voltages in Saudi Arabia's 220 V and 230 V nominal grid systems, and supports 350–550 V DC input for UPS bypass and battery-backed substation applications.
- Parallel operation of two PSU100S units on a common 24 V DC bus provides N+1 redundant control power for critical ARAMCO and SABIC automation panels, eliminating 24 V supply failure as a single point of failure.
- Power-good signalling relay output activates when the 24 V DC output is within specification and de-energises on output failure, providing a PLC diagnostic input that detects supply faults before downstream automation components fail.
- Adjustable output voltage (22.5–28.5 V DC) via front-panel trimmer compensates for long cable voltage drop between the PSU100S and distributed 24 V loads in large panels or remote field junction boxes.
- Compact DIN-rail format with widths from 45 mm (3.5 A) to 145 mm (40 A) allows multiple ratings to be mounted in a single panel row to serve independent 24 V load groups with separate supply sections.
- Overload and short-circuit protection with automatic restart recovers the 24 V supply after a transient overload without manual intervention, maintaining automation system availability at unmanned Saudi pump stations and remote substations.
التطبيقات الصناعية
- SIMATIC S7-1200 and S7-1500 PLC 24 V DC control supply in ARAMCO-approved motor control centre and process automation panels, where PSU100S is the mandatory Siemens-brand control power supply in ARAMCO Engineering Standard panel specifications.
- SIRIUS 3RT motor starter and 3RU overload relay control circuit 24 V DC supply in industrial MCCs at SABIC Jubail and Yanbu petrochemical plant expansions, where standardisation on SITOP ensures consistent spare parts across the complex.
- SIPROTEC protection relay auxiliary 24 V DC supply in SEC and industrial substation relay panels, where parallel redundant PSU100S units eliminate 24 V supply failure risk at critical 13.8 kV and 33 kV protection panels.
- SIMATIC ET 200SP distributed I/O station 24 V DC supply at field junction boxes in ARAMCO process plants, powering interface modules, I/O modules, and SCALANCE network switches from a single PSU100S without a remote panel.
- SINAMICS G120 and G120C control unit 24 V supply in multi-drive motor control panels, where the 40 A PSU100S powers the control electronics of up to 20 drives simultaneously from a single rail-mounted supply.
- Building automation SIMATIC S7-1200 and LOGO! control panel 24 V supply in HVAC plant rooms and building management panels at commercial towers, hospitals, and industrial facilities across Saudi Arabia.
- NWC water treatment plant PLC and instrumentation panel 24 V DC bus supply, where parallel redundant PSU100S units with power-good monitoring eliminate undetected 24 V failure at remote unmanned pump stations.
