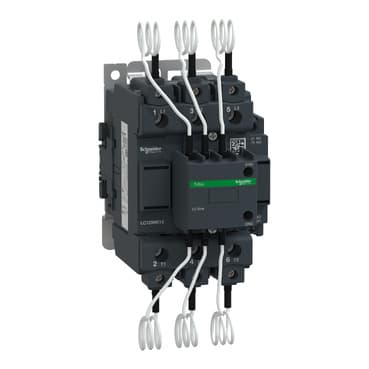

Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil
Model: LC1DWKP/N: LC1DWK12V7
4-hour response · Pricing in SAR · Delivery across all KSA regions
Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil
The Schneider Electric LC1DWK12V7 is a capacitor duty contactor from the TeSys range. Ingress protection is IP20 front face.
It is a genuine Schneider Electric product supplied with full manufacturer documentation and warranty through authorised channels.
Across Saudi Arabia, TeSys products are specified daily by maintenance and projects teams at Saudi Aramco, SABIC affiliates, SWCC desalination plants, cement plants and Vision 2030 giga-projects including NEOM. Schneider Electric equipment is specified across Saudi industrial, commercial and infrastructure projects. Razz Middle East supports EPC contractors and plant buyers in Riyadh, Jeddah, Dammam, Jubail and Yanbu with local stock and expedited sourcing through our Jeddah, Dubai and India operations.
Buy the Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil in Saudi Arabia from Razz Middle East. We stock fast-moving TeSys references in Jeddah and Dammam with GCC-wide delivery, respond to every RFQ within 4 hours, and supply genuine Schneider Electric products with manufacturer warranty, test certificates and SASO-compliant documentation. Contact our sales team for pricing, stock availability and technical support for LC1DWK12V7.
Technical Specifications
Full specifications for the LC1DWK
- Range
- TeSys
- Product name
- TeSys LC1D.K; TeSys Deca
- Product or component type
- Capacitor duty contactor
- Device short name
- LC1DWK
- Device application
- Control
- Contactor application
- Power factor correction
- Utilisation category
- AC-6b
- Poles description
- 3P
- power pole contact composition
- 3 NO
- Device location in system
- Line interruption; Inside delta interruption
- Ue rated operational voltage
- Power circuit: 690 V AC 50/60 Hz
- Reactive power rating
- 35 kvar at 230 V AC 50 Hz 60 °C; 63 kvar at 400 V AC 50 Hz 60 °C; 67 kvar at 440 V AC 50 Hz 60 °C; 104 kvar at 690 V AC 50 Hz 60 °C; 30 kvar at 230 V AC 60 Hz 60 °C; 60 kvar at 460 V AC 60 Hz 60 °C; 80 kvar at 575 V AC 60 Hz 60 °C
- Control circuit type
- AC at 50/60 Hz
- Uc control circuit voltage
- 400 V AC 50/60 Hz
- Auxiliary contact composition
- 1 NO + 2 NC instantaneous
- Electrical durability
- 300000 cycles at Ue 400 V; 200000 cycles at Ue 690 V
Key Features & Benefits
- Genuine Schneider Electric
- Full manufacturer warranty
- IEC-certified design
- Global spares availability
- SASO-compliant documentation
- Professional technical support
Industrial Applications in Saudi Arabia
- Industrial projects
- Commercial buildings
- Infrastructure
- OEM machinery
- Maintenance and MRO
- Panel building
Industrial Supplier in Saudi Arabia
Get a Quote for the Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil
We respond within 4 business hours. Send model LC1DWK for competitive pricing in SAR with delivery across Saudi Arabia and the GCC.
Frequently Asked Questions — LC1DWK
Common questions from buyers in Saudi Arabia and the GCC
What is the Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil (LC1DWK) and what is it used for?
The Schneider Electric LC1DWK12V7 is a capacitor duty contactor from the TeSys range. Ingress protection is IP20 front face.
Where can I buy the Schneider Electric LC1DWK in Saudi Arabia?
Razz Middle East supplies genuine Schneider Electric products including the Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil (LC1DWK) across all regions of Saudi Arabia — Riyadh, Jeddah, Dammam, Al Khobar, Jubail, Yanbu, Mecca, and Medina. We maintain local stock on fast-moving items and can source specialist configurations. Request a quote on this page for same-day pricing.
How do I get the best price for the LC1DWK in KSA?
Click "Request Free Quote" on this page or message us the model number LC1DWK on WhatsApp. Our technical sales team responds within 4 business hours with a competitive price in SAR, confirmed stock availability, and delivery lead time — with no hidden charges or handling fees.
Is Razz Middle East an authorized Schneider Electric supplier in Saudi Arabia?
Razz Middle East is a specialist industrial equipment supplier in Saudi Arabia focused on Schneider Electric and other leading global brands. We supply 100% genuine OEM products backed by full manufacturer warranty, serving the oil & gas, petrochemical, power generation, water, construction, and manufacturing sectors across the Kingdom.
What is the delivery lead time for the Schneider LC1DWK12V7 Capacitor Contactor 63kVAR at 400/415V 50Hz 400V AC 50/60Hz coil in Saudi Arabia?
In-stock items typically ship within 24-48 hours to Riyadh, Dammam, Jeddah, and the Eastern Province. Project orders and non-standard configurations generally take 2-6 weeks. Contact us with the exact model number LC1DWK for a precise availability confirmation and delivery date.
Can the LC1DWK be supplied for ARAMCO, SABIC, or NEOM projects in KSA?
Yes. Razz Middle East has experience supplying Schneider Electric equipment to major industrial projects and EPC contractors across Saudi Arabia. We can provide full technical documentation, Material Inspection Reports (MIR), and certificates of conformity to meet vendor approval requirements. Contact our project team to discuss your specific project requirements.
