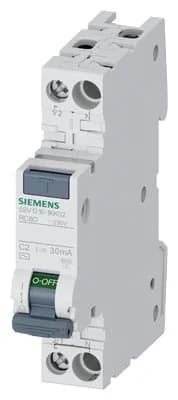

Siemens 5SV RCCB Residual Current Device

The Siemens 5SV residual current circuit breaker (RCCB) provides life-safety protection against electric shock and the risk of electrical fire caused by residual earth leakage currents — the two failure modes that thermal-magnetic MCBs cannot detect because they respond only to overload and short-circuit, not to the small ground-fault currents that cause electrocution. The 5SV covers rated load currents from 25 A to 125 A in four sensitivity levels (10 mA, 30 mA, 100 mA, 300 mA) and three current types: Type AC for sinusoidal earth leakage from conventional loads; Type A for loads that produce pulsating DC leakage currents (variable speed drives, electronic equipment, LED drivers, EV chargers); and Type F for loads generating high-frequency leakage currents from switched-mode power supplies and three-phase drives.

The 30 mA sensitivity level is the international standard for personal shock protection, based on IEC 60479 research showing that 30 mA is below the cardiac fibrillation threshold for most healthy adults. Saudi Arabia's updated electrical installation standards increasingly mandate 30 mA RCD protection for socket outlets in bathrooms, kitchens, outdoor areas, and all circuits where water or moisture is present — installations where electrocution risk from fault-to-earth on metal equipment casings is statistically most likely. The 5SV's high immunity to nuisance tripping from transient earth leakage currents associated with motor starting, capacitor discharge equipment, and large electronic load switching reduces operational disruptions in facilities where false tripping causes significant inconvenience or safety risk.

In Saudi Arabia, the 5SV RCCB is increasingly mandated in new residential and commercial construction as the Saudi Building Code and SEC electrical installation requirements align with international IEC 60364 RCD protection standards. Residential compound developments in Riyadh and Jeddah specify Type A 5SV RCCBs on all socket outlet circuits to address the growing density of variable speed drives, LED lighting, and EV charging points that generate pulsating DC leakage. Hotels, hospitals, and commercial facilities specify Type F RCCBs on circuits serving conference AV equipment, data centre UPS systems, and HVAC variable speed drives where high-frequency leakage would cause nuisance tripping on conventional Type AC devices.

Razz Middle East supplies 5SV RCCBs in all current ratings, sensitivities, types, and pole configurations (2P/4P) for immediate delivery to panel builders, electrical contractors, and project sites throughout Saudi Arabia, with technical advice on Type selection and sensitivity coordination for complex protection schemes.
